Rear Seat Center Belt Buckle Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

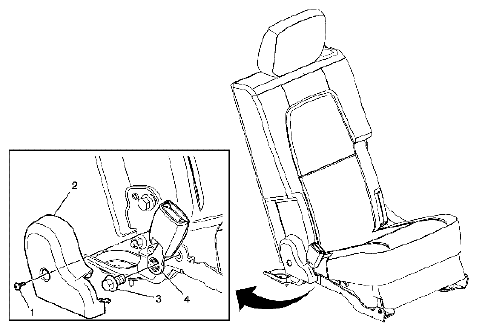

CALLOUT COMPONENT NAME
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the second row seat cushion cover and pad. Refer to REAR SEAT CUSHION COVER AND PAD REPLACEMENT . |
|
| 1 | Rear Seat Belt Buckle Bolt Tip: Apply GM P/N 12345382 (Canadian P/N 10953489), Permatex® 24200 or equivalent on all restraint fasteners prior to installation.
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 50 N.m (37 lb ft) |
| 2 | Rear Seat Belt Buckle |
