Auxiliary Heater Core Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

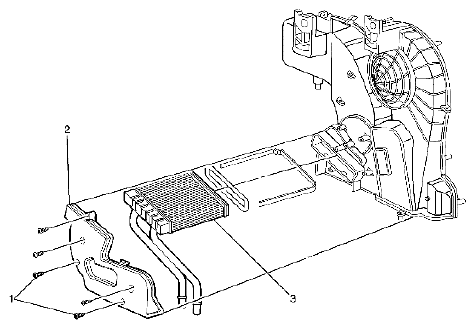

Fig 1: Identifying Auxiliary Heater Core Assembly, Auxiliary Heater Core Cover & Screws

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME TABLE

Callout	Component Name
Preliminary Procedure Remove the thermal expansion valve. Refer to AUXILIARY AIR CONDITIONING EVAPORATOR THERMAL EXPANSION VALVE REPLACEMENT . Remove the auxiliary HVAC module. Refer to AUXILIARY HVAC MODULE REPLACEMENT Tip: Ensure the lower case gasket is in good condition upon installation. Disconnect the electrical connectors.
1	Auxiliary Heater Core Cover Screws (Qty: 6). CAUTION: Refer to FASTENER NOTICE . Tightening torque 1.5 N.m (13 lb in)
2	Auxiliary Heater Core Cover
3	Auxiliary Heater Core Assembly Tip: Ensure the heater core gasket is in good condition upon installation.
