Auxiliary Blower Motor Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

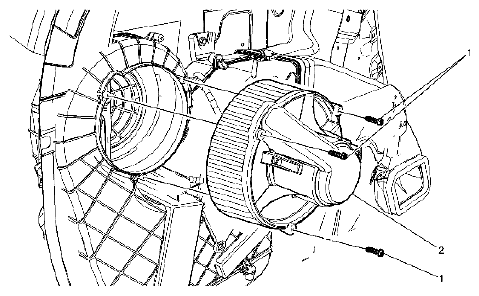

CALLOUT COMPONENT NAME TABLE
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left rear trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT . |
|
| 1 | Auxiliary blower motor screws (Qty 3).
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 1.5 N.m (13 lb in) |
| 2 | Auxiliary blower motor. Tip: Disconnect electrical connection. |
