Radio Rear Side Door Speaker Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

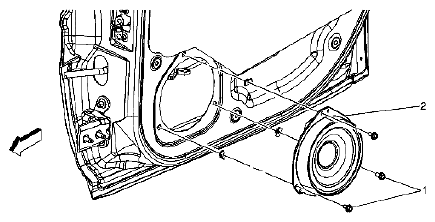

Fig 1: Identifying Rear Door Speaker & Screws

Courtesy of SUZUKI OF AMERICA CORP.

RADIO REAR SIDE DOOR SPEAKER REPLACEMENT REFERENCE

Callout	Component Name
CAUTION: Refer to FASTENER NOTICE . Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - CELLULAR, ENTERTAINMENT, AND NAVIGATION .Preliminary ProcedureRemove the rear door inner trim panel. Refer to REAR SIDE DOOR TRIM PANEL REPLACEMENT .
1	Rear Door Speaker Screw (Qty: 3) Tightening torque 2.5 N.m (22 lb in)
2	Rear Door Speaker Tip: Disconnect the electrical connector.
