Rear Side Door Trim Panel Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

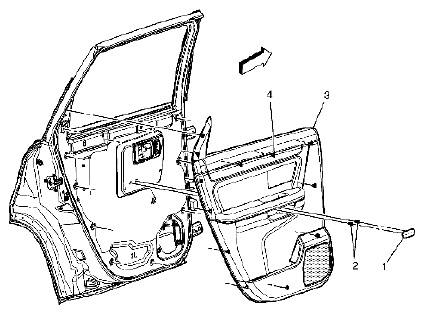

COMPONENTS REFERENCE
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove door handle bezel. Refer to DOOR HANDLE BEZEL REPLACEMENT . |
|
| 1 | Rear Side Door Trim Panel Plug |
| 2 | Rear Side Door Trim Panel Screw (Qty: 2) Tightening torque 2.5 N.m (22 lb in)
CAUTION:
Refer to FASTENER NOTICE
.
|
| 3 | Rear Side Door Trim Panel Assembly |
| 4 | Rear Side Door Trim Panel Retainer (Qty: 12) |
