TCS/ESP, brief description: Overview

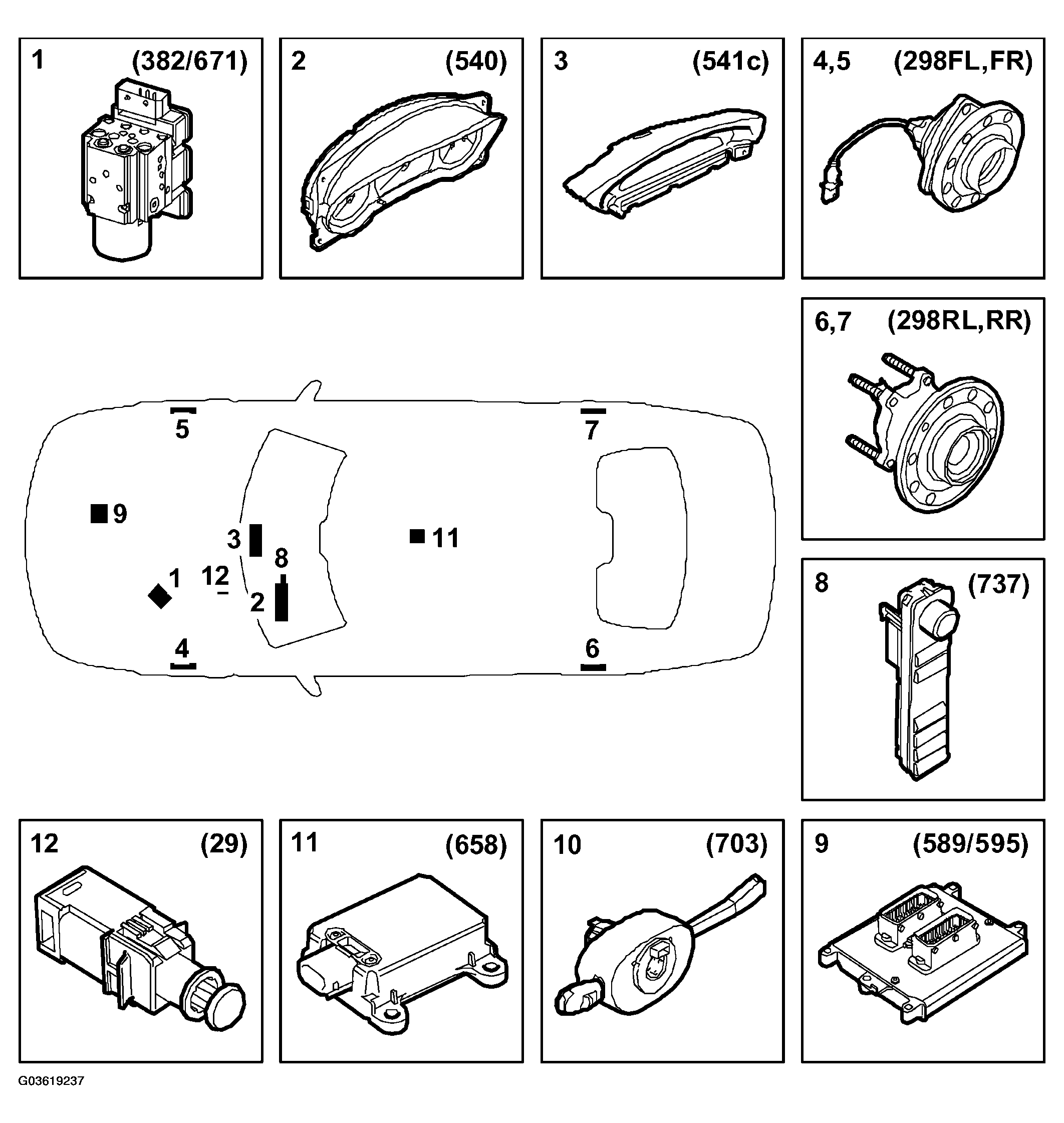

Fig 1: Identifying Communication Diagram Overview Of TCS/ESP

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TCS CONTROL MODULE (382) /ESP CONTROL MODULE (671)
- control module
- valve housing
- pump
FRONT WHEEL SPEED SENSOR (298F)
REAR WHEEL SPEED SENSOR (298R)
MIU (540)
- ABS warning lamp
- TCS or ESP indicator lamp
- TCS OFF or ESP OFF warning lamp
- Brake warning lamp (EBD fault)
SID (541)
- Warning message, EBD fault
- Warning message, ABS fault
- Warning message, TCS fault
- Warning message, ESP fault
SID control panel, SIDC (737)
- TCS or ESP ON/OFF
Infotainment control panel, ICM (736)
CONTROL MODULE, TRIONIC 4 CYL PETROL (589) /Control module, EDC16 4 cyl diesel (595)
Switch, brake lights (29), Petrol/Switch, brake lights (29), Diesel
Column Integration Module (703) - ESP only
YAW SENSOR (658) - ESP only
