TCS control module (382)

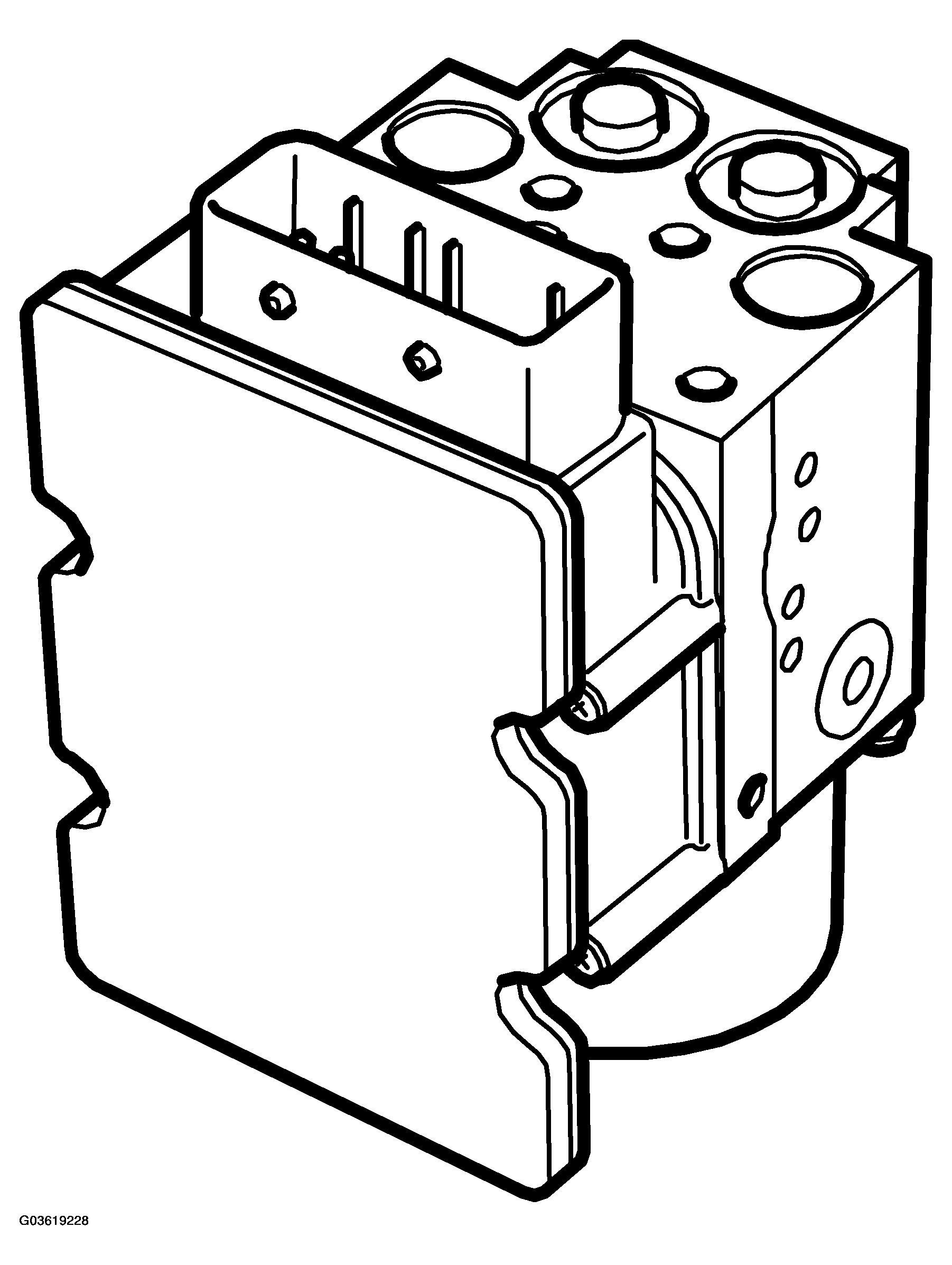

Fig 1: Identifying TCS Control Module (382)
G03619228Courtesy of SAAB-SCANIA OF AMERICA, INC.
TCS CONTROL MODULE SPECIFICATION

Control valves inlet 4
  outlet 4
Pump Type Eccentric plunger pump
  Max pressure 160 bar
