Work Flow
WARNING:
This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

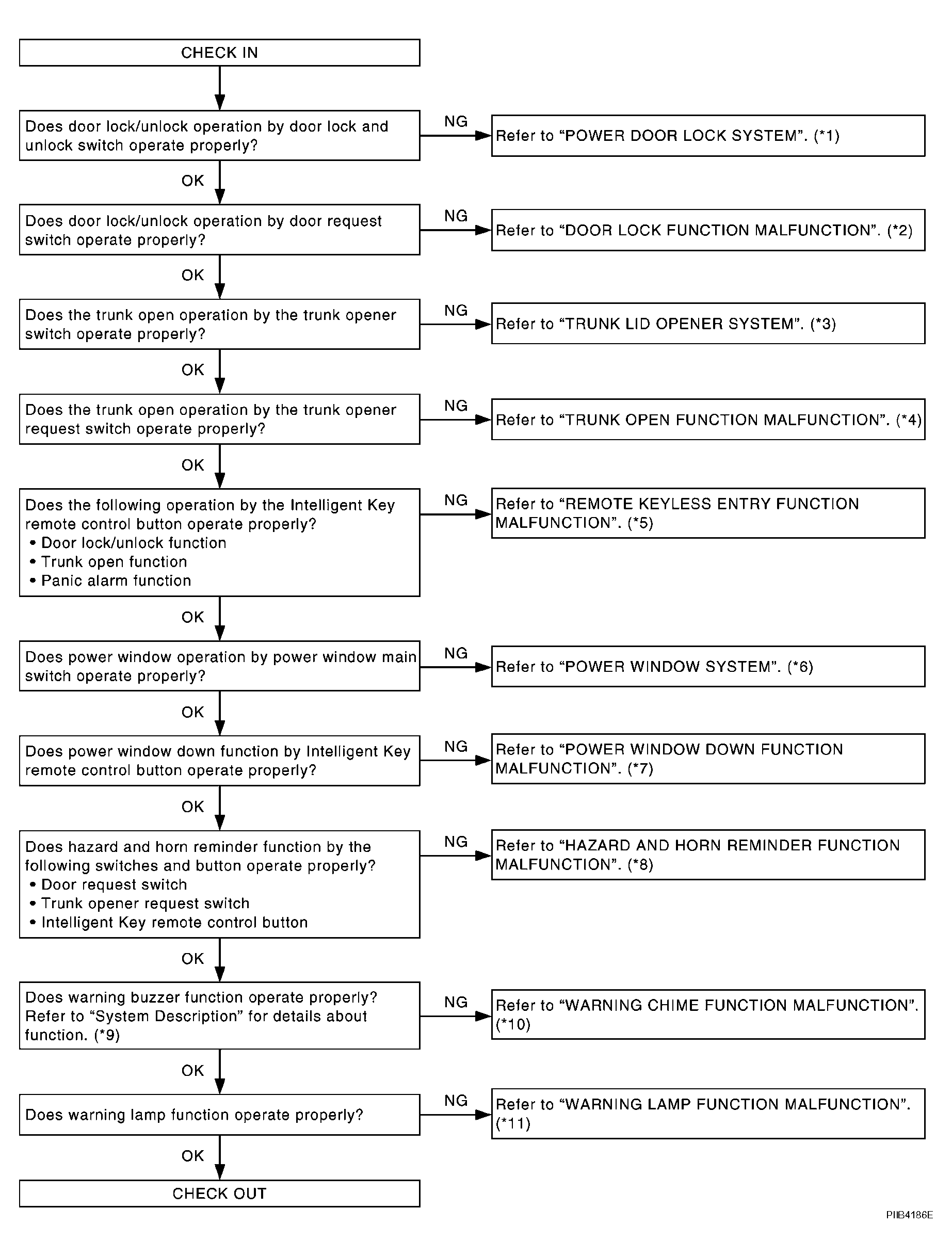

Fig 1: Trouble Diagnosis Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
TROUBLE DIAGNOSIS WORK FLOW CHART REFERENCES
*1.
POWER DOOR LOCK SYSTEM
*2.
DOOR LOCK/UNLOCK FUNCTION MALFUNCTION
*3.
CHECK TRUNK LID OPENER SYSTEM
*4.
TRUNK OPEN FUNCTION MALFUNCTION
*5.
REMOTE KEYLESS ENTRY FUNCTION MALFUNCTION
*6.
POWER WINDOW SYSTEM
*7.
POWER WINDOW DOWN FUNCTION MALFUNCTION
*8.
TRUNK OPEN FUNCTION MALFUNCTION
*9.
WARNING CHIME FUNCTION
*10.
POWER WINDOW DOWN FUNCTION MALFUNCTION
*11.
CHECK CAN COMMUNICATION SYSTEM
