Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • When the engine assembly replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE .
  • *: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

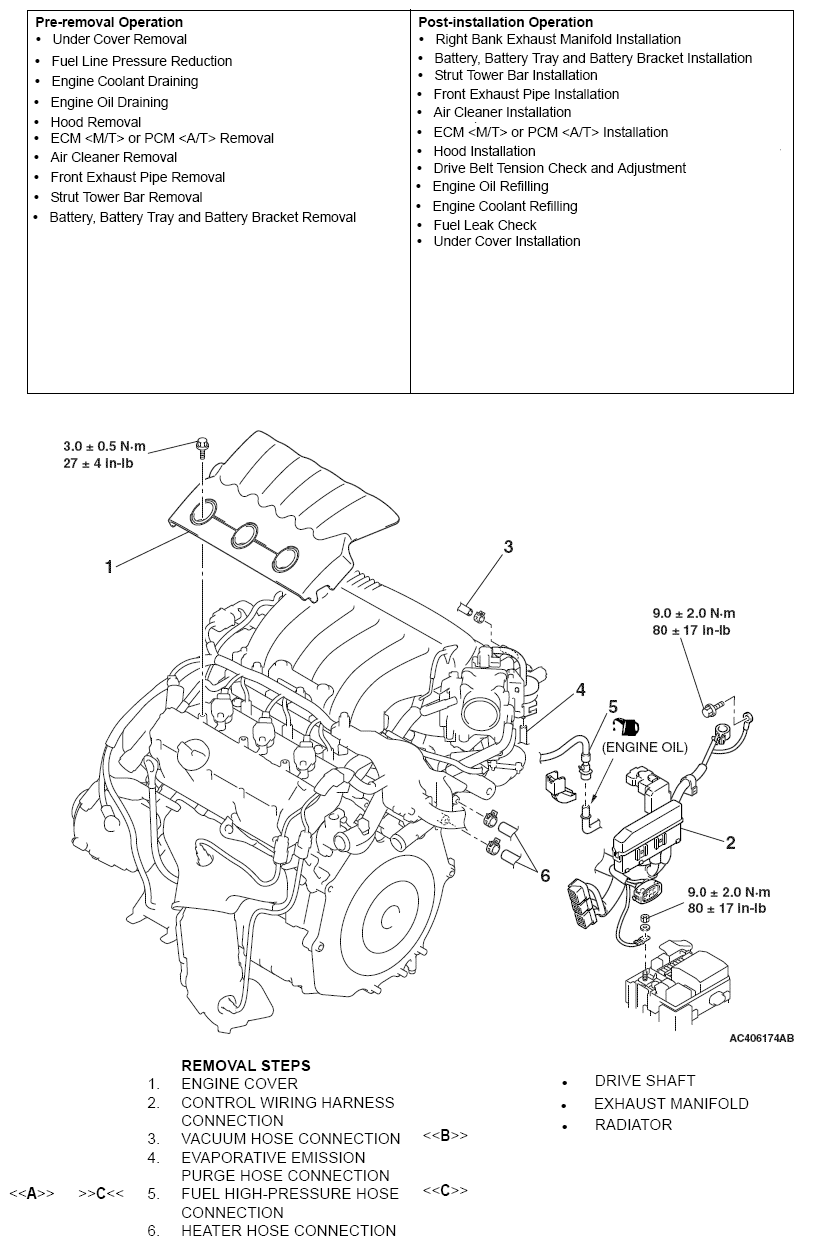

Fig 1: Removing Engine Assembly With Torque Specifications (1 Of 2)
G06688181Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

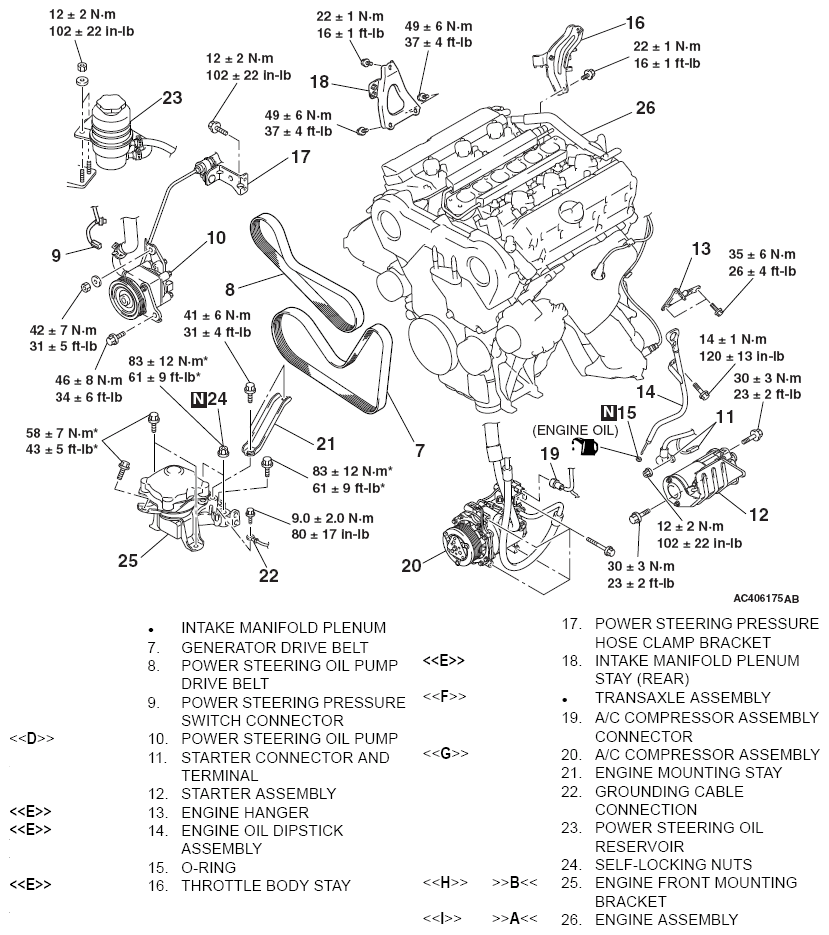

Fig 2: Removing Engine Assembly With Torque Specifications (2 Of 2)
G06688182Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
