Removal And Installation: Notes

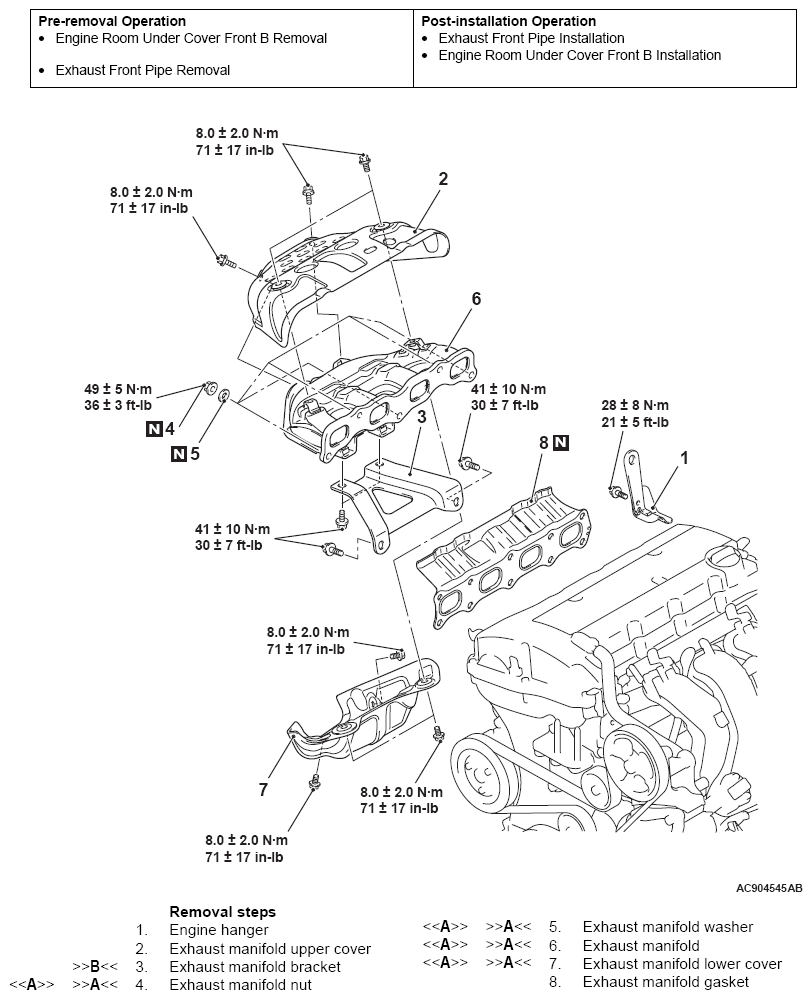

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications
G07047243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
