Removal And Installation: Notes

CAUTION:

When removing or installing the mass airflow sensor, be careful not to apply impact to the sensor.
Do not reuse the mass airflow sensor that has been dropped.

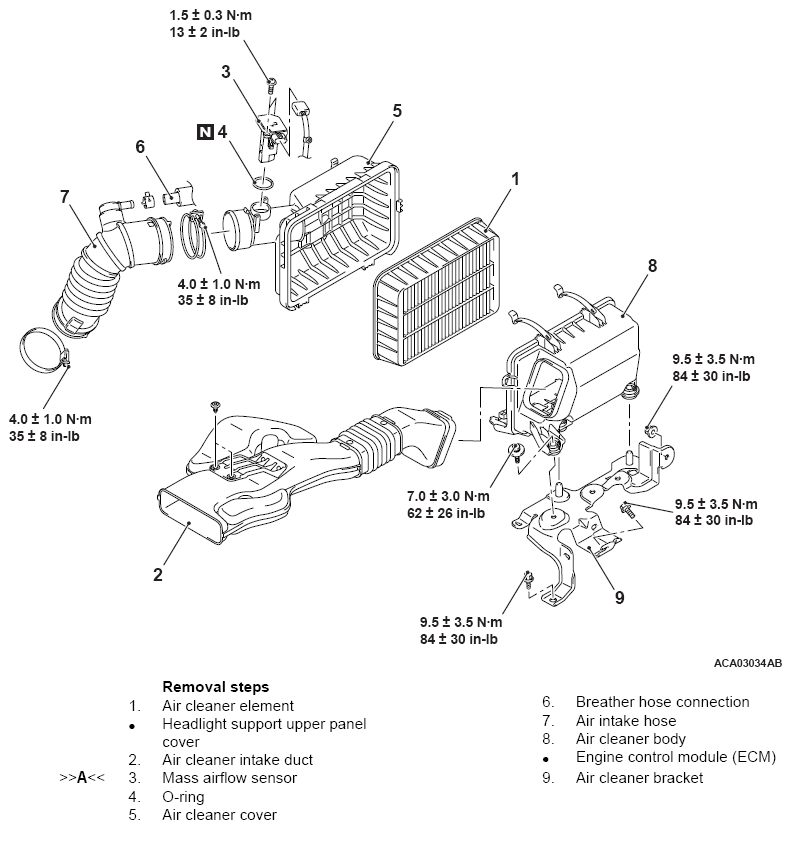

Fig 1: Air Cleaner Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
