Remove/Install Right Engine Support - Ar22.10-D-4340TSV

Engine 642 in model 907

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Detach ground line of on-board electrical system battery.		AR54.10-D-0029TS
2	Remove right engine mount.		AR22.10-D-4330TSV

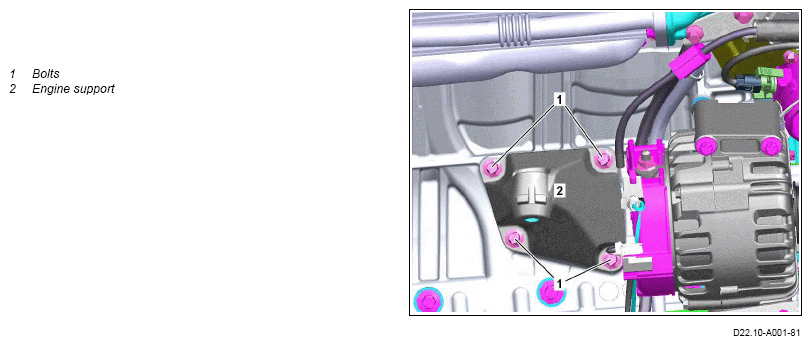

3	Remove engine carrier (2). Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
		To do this, remove screw/bolts (1). Bolt, engine support to crankcase	*BA22.10-N-1006-01TSR
4	Install in the reverse order.

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 642 in model 907
BA22.10-N-1006-01TSR	Bolt, engine support to crankcase	Stage 1	Nm	20
		Stage 2	∠ °	90
