Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
  |
Remove/install |
|
|
| 1 |
Raise vehicle. |
|
AR00.60-D-1000-04TS |
| Special instructions for lifting and supporting vehicle |
|
AH00.60-N-0100-01TS |
| 2 |
Remove engine compartment lining. |
If installed. |
AR61.20-D-1105TS |
| 3 |
Remove bolts (1). |
Screw/bolt, front engine mount to front axle carrier |
*BA22.10-N-1004-01TSR |
| 4 |
Remove charge air hose upstream of charge air cooler from charge air line. |
|
AR09.41-D-1311-01WE |
Assembly tool |
Fig 1 |
| 5 |
Remove air filter housing. |
|
AR09.10-D-1150TSV |
| 6 |
Remove ventilation box. |
|
AR83.10-D-0010TS |
| 7 |
Remove fan shroud from cooler. |
Do not remove fan and coolant hose. Place fan shroud on fan wheel. |
AR20.40-D-6800TSV |
| 8 |
Position engine support bracket and raise engine until the engine mounts (2) are no longer loaded. |
Raise engine carefully.
The surrounding assembly parts can get damaged otherwise. |
AR33.10-D-0100-01TSV |
|
Screw, engine oil filler neck to holder |
*BA01.20-N-1008-01O |
|
Engine lifting device |
Fig 4 |
|
Strut |
Fig 3 |
|
Mounting plates |
Fig 2 |
| 9 |
Remove engine mounts (2). |

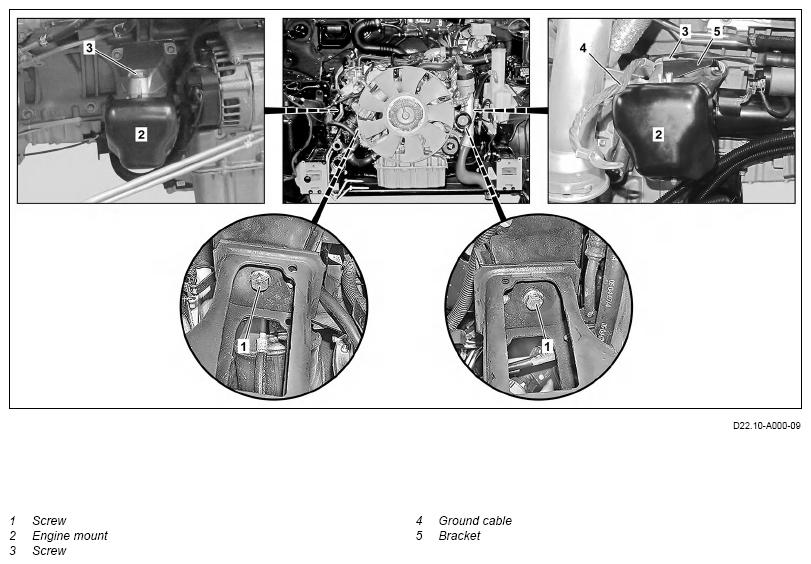

To do this, remove screws/bolts (3).
 :
Position ground line (4) and bracket (5) correctly on left engine mount (2).
Bolt, engine support to front engine mount |
*BA22.10-N-1005-01TSR |
| 10 |
Install in the reverse order. |
|
|
