Remove/Install Air Intake Pipe - Ar09.10-D-8131TSV
Engine 642 in model 907
MODIFICATION NOTES
| 02.07.2019 | Clamp, air intake pipe to ATL | BA09.40-N-1001-02TSV |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove engine cover. | AR01.10-D-2405TSV | |
| 2 | Release clamp (3). | ||
Replace clamp (3). |
*BA09.40-N-1001-02TSV | ||
| 3 | Remove air intake pipe (1) from exhaust gas turbocharger. Notes on installing air intake pipe on exhaust gas turbocharger |
Do not crush sealing ring (2) between air intake pipe (1) and exhaust gas turbocharger. Parts of a pinched sealing ring (2) will damage the exhaust gas turbocharger. |
AH09.40-N-0001-03TSV |
| 4 | Disconnect electrical connector of heating + element (4). | ||
| 5 | Remove heating element (4) from air intake pipe (1). | ||
| 6 | Remove air intake pipe (1). | ||

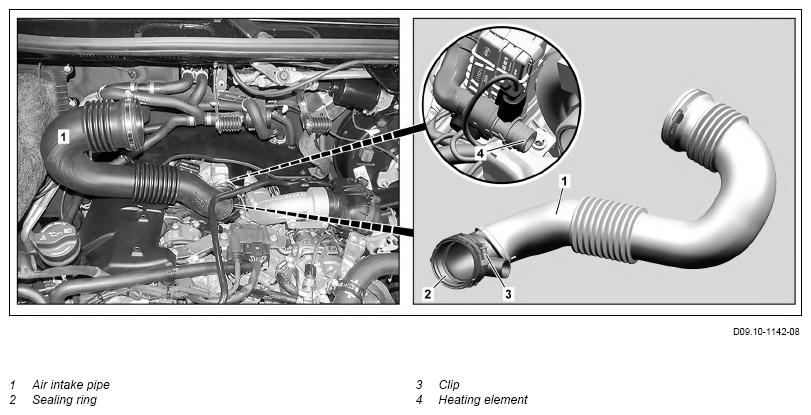

| Fig 1 | |||
| 7 | Install in the reverse order. | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Check for leaktightness when engine is running. |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA09.40-N-1001-02TSV | Clamp, air intake pipe to turbocharger | Nm | 4 |
