Remove/Install Engine Cover - Ar01.10-D-2405TSV

Engine 642 in model 907

	Remove/install
1	Remove air filter housing		AR09.10-D-1150TSV
2	Unlock quick-release couplings (2)	Quick-release couplings (2) remain in the engine cover (1). : Check the retaining clips of the quick-release couplings (2) in the covers of the cylinder head covers. Depending on findings ↓ Replace the retaining clips of the quick-release couplings (2) in the covers of the cylinder head covers.

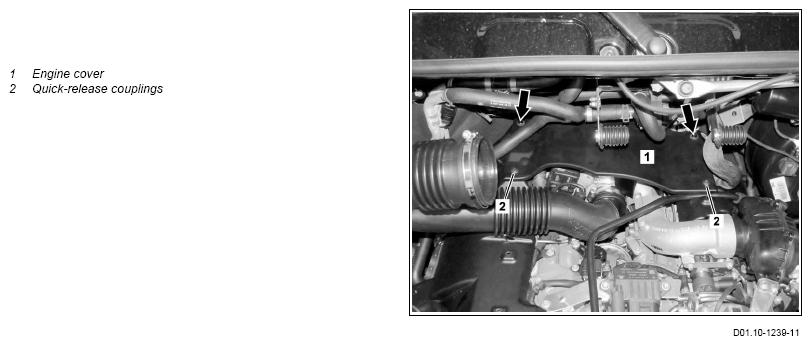

3	Remove engine cover (1)	: Make sure the engine cover (1) has been correctly positioned at the rear attachment points (arrows).
4	Install in the reverse order
