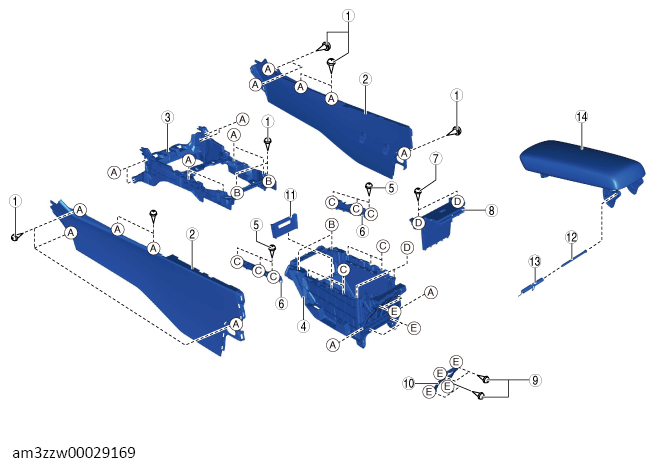

Rear Console Disassembly/Assembly: Notes
- Disassemble in the order indicated in the table.
 Courtesy of MAZDA MOTORS CORP.
|
PARTS DESCRIPTION
| 1 |
Screw |
| 2 |
Console panel
(See CONSOLE PANEL REMOVAL NOTE .) |
| 3 |
Rear console bracket (front) |
| 4 |
Rear console box |
| 5 |
Screw |
| 6 |
Bracket cover |
| 7 |
Screw |
| 8 |
Rear console parts |
| 9 |
Screw |
| 10 |
Rear console bracket (rear) |
| 11 |
Plate |
| 12 |
Pin |
| 13 |
Spring |
| 14 |
Rear console lid |
- Assemble in the reverse order of disassembly.
