Console Panel Removal Note

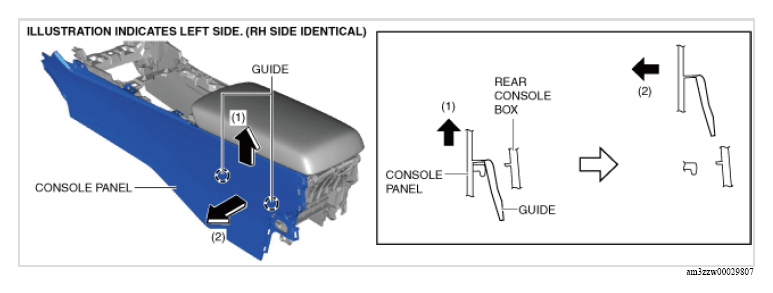

- Move the console panel in the order of arrows (1) and (2) shown in the figure and remove the guides from the rear console box.
 Courtesy of MAZDA MOTORS CORP.
|
