HVAC Basic System Location Index

Fig 1: HVAC Basic System Parts Location (1 Of 2)

G09786847

Courtesy of MAZDA MOTORS CORP.

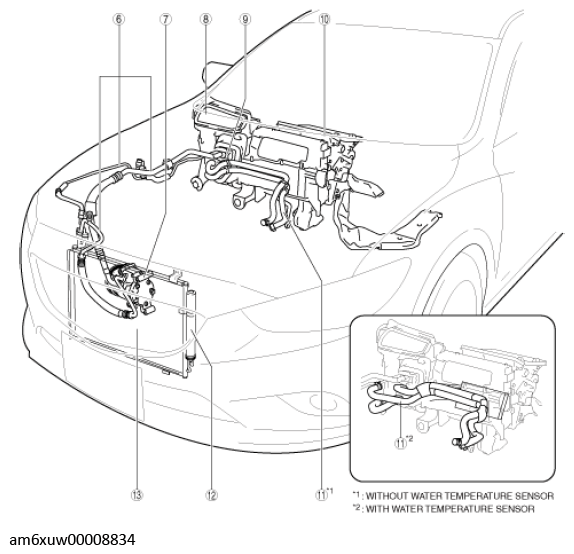

Fig 2: HVAC Basic System Parts Location (2 Of 2)

G11545527

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
2	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION .)
3	Air filter (See AIR FILTER REMOVAL/INSTALLATION .) (See AIR FILTER INSPECTION .)
4	Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION .)
5	Rear vent duct (with rear vent) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
6	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION .)
7	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION .)
8	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION .) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY .)
9	Expansion valve (See EXPANSION VALVE REMOVAL/INSTALLATION .)
10	A/C unit (See A/C UNIT REMOVAL/INSTALLATION .) (See A/C UNIT DISASSEMBLY/ASSEMBLY .) (See EXPANSION VALVE REMOVAL/INSTALLATION .) (See EVAPORATOR INSPECTION .) (See HEATER CORE INSPECTION .)
11	Heater hose (See HEATER HOSE REMOVAL/INSTALLATION .)
12	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION .)
13	Condenser (See CONDENSER REMOVAL/INSTALLATION .) (See CONDENSER INSPECTION .)
