Blower Unit Disassembly/Assembly
CAUTION:
- Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.
- Disassemble in the order indicated in the table.COMPONENT DESCRIPTION

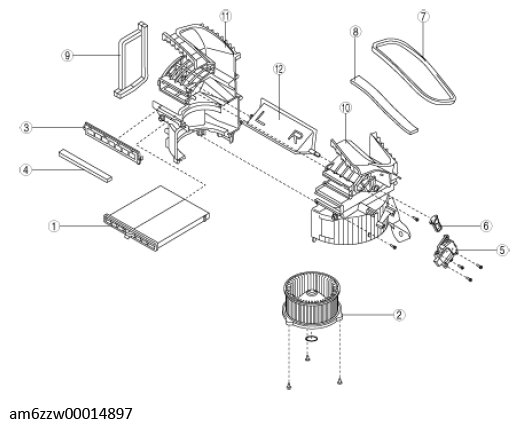

1 Air filter 2 Blower motor 3 Cover 4 Polyurethane (1) 5 Air intake actuator 6 Air intake link 7 Polyurethane (2) 8 Polyurethane (3) 9 Polyurethane (4) 10 Blower case (1) 11 Blower case (2) 12 Air intake door - Assemble in the reverse order of disassembly.
