Blower Motor Removal: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The blower motor is located on the A/C unit as shown in the figure.

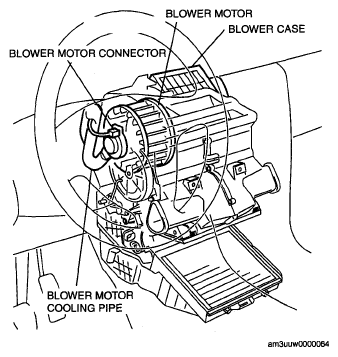

    Fig 1: Identifying Blower Motor Components
    G04956338Courtesy of MAZDA MOTORS CORP.
  • Perform the work from the front passenger's side in the posture shown in the figure.
  1. Set the air intake mode to FRESH.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    5. PJB and PJB bracket (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION .)
    6. Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION .)
    7. Auto leveling control module
      Fig 2: Identifying Blower Motor Components
      G04956339Courtesy of MAZDA MOTORS CORP.
  4. Cut off the temporary steering stay on the passenger's side.
  5. Detach the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  6. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
    Fig 3: Identifying Blower Motor Components
    G04956340Courtesy of MAZDA MOTORS CORP.
  7. Remove the screws shown in the figure and slide the blower case.

    LF, L3

    Fig 4: Identifying Blower Motor Components
    G04956341Courtesy of MAZDA MOTORS CORP.

    L3 with TC

    Fig 5: Identifying Blower Motor Components
    G04956342Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the air intake actuator connector.
  9. Remove the blower case shown in the figure.

    LF, L3

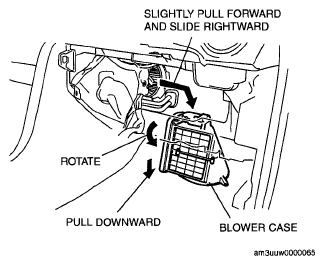

    Fig 6: Identifying Air Intake Actuator Connector And Blower Case
    G04956343Courtesy of MAZDA MOTORS CORP.

    L3 with TC

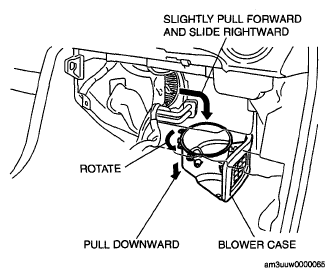

    Fig 7: Identifying Air Intake Actuator Connector And Blower Case
    G04956344Courtesy of MAZDA MOTORS CORP.
  10. Remove the air guide.
  11. Install the SST (49 B061 015)  to the blower motor. (See SST INSTALLATION NOTE ).
  12. Disconnect the resistor connector. (Manual air conditioner)
    Fig 8: Identifying Air Guide
    G04956345Courtesy of MAZDA MOTORS CORP.
  13. Disconnect the blower motor cooling pipe connected to the blower motor.
  14. Remove the airflow mode actuator. (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION ).
    Fig 9: Identifying Blower Motor Cooling Pipe
    G04956346Courtesy of MAZDA MOTORS CORP.
  15. Disconnect the blower motor connector as shown in the figure.
  16. Remove the blower motor cover. (See BLOWER MOTOR COVER REMOVAL NOTE ).
    CAUTION:
    • When the blower motor cover is removed, the blower motor could fall in the A/C unit case causing the sirocco fan to be damaged. Therefore another person must hold the blower motor at the installation position.
      Fig 10: Identifying Blower Motor Cover Connector
      G04956347Courtesy of MAZDA MOTORS CORP.
  17. Remove the blower motor by pulling it out. (See BLOWER MOTOR REMOVAL NOTE ).
    Fig 11: Removing/Installing Blower Motor
    G04956348Courtesy of MAZDA MOTORS CORP.
