Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.

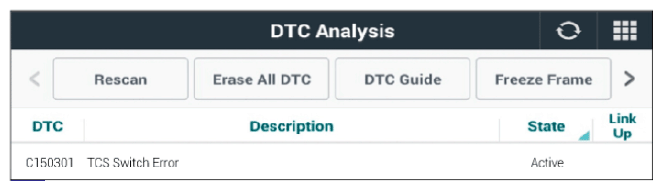

 figure below.
G12575449Courtesy of KIA MOTORS AMERICA, INC.

Active Fault:

History/Pending Fault:
