Monitor KDS/GDS Data

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON", Engine "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor "ESP ON/OFF Switch (ESP only)" parameter in "Current Data" with KDS/GDS.
  3. Operate the ESC/ESP On/Off switch.

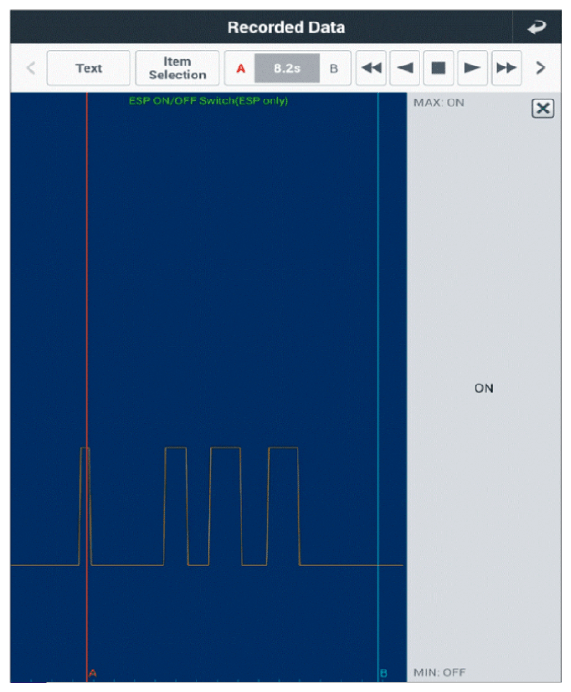

figure below.
G12575450Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
