Indicator, Seat Belt Reminder (SBR): Installation

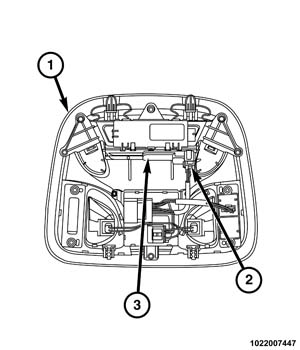

- Position the Seat Belt Reminder (SBR) indicator (3) to the overhead console (1) housing.
- Align the SBR indicator to the opening in the overhead console housing.
- Press the outboard ends of the SBR indicator firmly and evenly into the overhead console housing until the four spring clips are fully seated.
- Connect the overhead console wire harness connector (2) to the SBR indicator connector receptacle.
- If equipped, install the Ultrasonic and Antitilt Module (UAM) to the overhead console. Refer to MODULE, ULTRASONIC AND ANTI-TILT, INSTALLATION .
- Install the overhead console to the headliner. Refer to CONSOLE, OVERHEAD, FRONT, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
