System Description

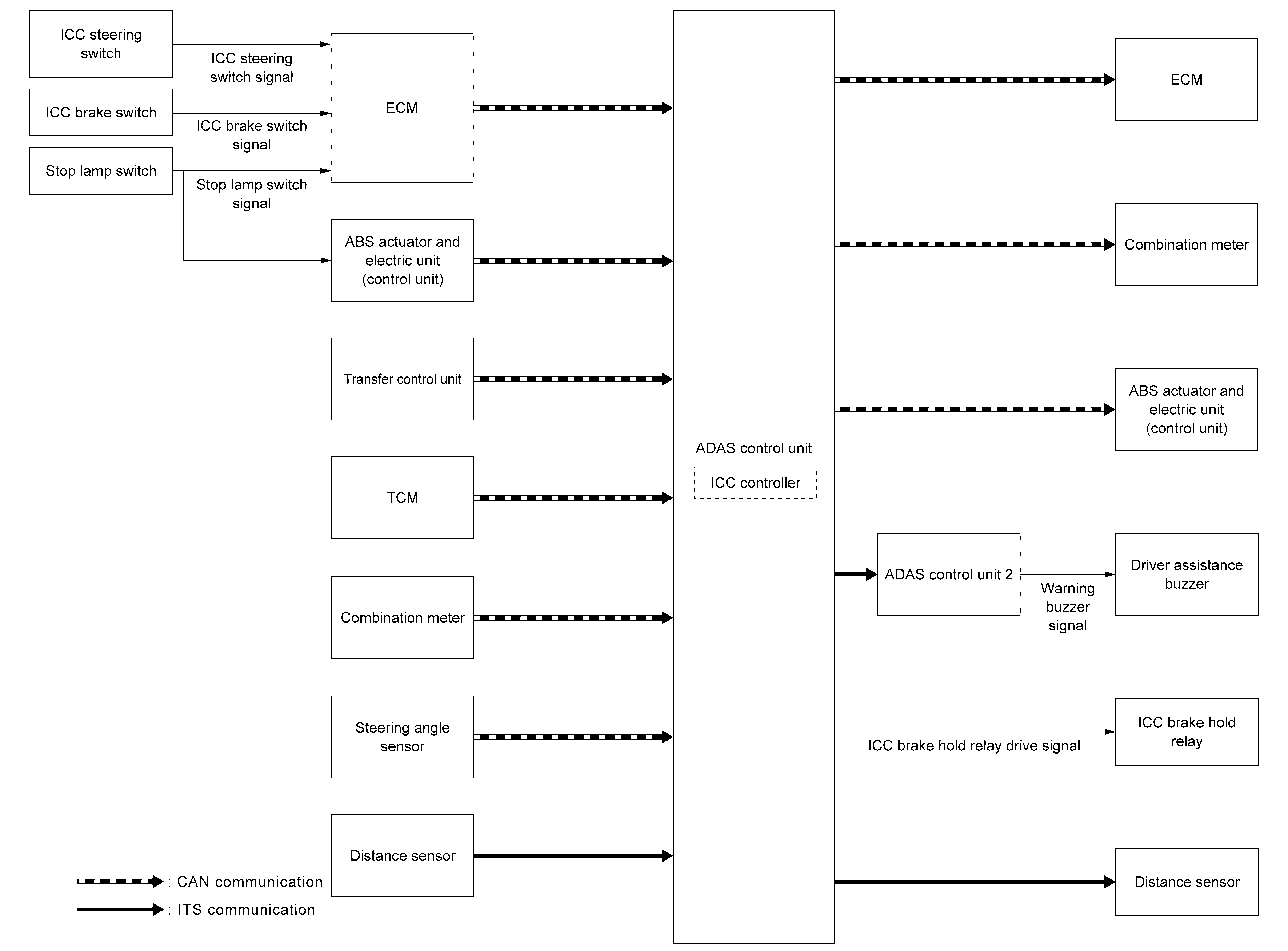

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

ADAS CONTROL UNIT INPUT/OUTPUT SIGNAL ITEM

Input Signal Item

Transmit unit	Signal name			Description
ECM	CAN communication	Closed throttle position signal		Receives idle position state (ON/OFF)
		Accelerator pedal position signal		Receives accelerator pedal position (angle)
		ICC prohibition signal		Receives an operable/inoperable state of the ICC system
		Engine speed signal		Receives engine speed
		ICC steering switch signal	MAIN switch signal	Receives the operational state of the ICC steering switch
			SET/COAST switch signal
			CANCEL switch signal
			RESUME/ACCELERATE switch signal
			DISTANCE switch signal
		Stop lamp switch signal		Receives an operational state of the brake pedal
		ICC brake switch signal		Receives an operational state of the brake pedal
		Snow mode switch signal		Receives an operational state of the snow mode
TCM	CAN communication	Input speed signal		Receives the number of revolutions of input shaft
		Current gear position signal		Receives a current gear position
		Shift position signal		Receives a selector lever position
		Output shaft revolution signal		Receives the number of revolutions of output shaft
ABS actuator and electric unit (control unit)	CAN communication	ABS malfunction signal		Receives a malfunction state of ABS
		ABS operation signal		Receives an operational state of ABS
		ABS warning lamp signal		Receives an ON/OFF state of ABS warning lamp
		TCS malfunction signal		Receives a malfunction state of TCS
		TCS operation signal		Receives an operational state of TCS
		VDC OFF switch signal		Receives an ON/OFF state of VDC
		VDC malfunction signal		Receives a malfunction state of VDC
		VDC operation signal		Receives an operational state of VDC
		Vehicle speed signal		Receives wheel speeds of four wheels
		Stop lamp switch signal		Receives an operational state of the brake pedal
		Yaw rate signal		Receives yaw rate acting on the vehicle
Combination meter	CAN communication	Parking brake switch signal		Receives an operational state of the parking brake
Steering angle sensor	CAN communication	Steering angle sensor malfunction signal		Receives a malfunction state of steering angle sensor
		Steering angle sensor signal		Receives the number of revolutions, turning direction of the steering wheel
		Steering angle speed signal		Receives the turning angle speed of the steering wheel
Transfer control unit	CAN communication	Current 4WD mode signal		Receives a mode selection state of the 4WD mode
Distance sensor	ITS communication	Distance sensor signal		Receives detection results, such as the presence or absence of a leading vehicle and distance from the vehicle

Output Signal Item

Reception unit	Signal name			Description
ECM	CAN communication	ICC operation signal		Transmits an ICC operation signal necessary for intelligent cruise control
ABS actuator and electric unit (control unit)	CAN communication	Brake fluid pressure control signal		Transmits a brake fluid pressure control signal to activates the brake
Combination meter	CAN communication	Meter display signal	Own vehicle indicator signal	Transmits a signal to display a state of the system on the information display
			Vehicle ahead detection indicator signal
			Set vehicle speed indicator signal
			Set distance indicator signal
			SET switch indicator signal
			MAIN switch indicator signal
		ICC warning lamp signal		Transmits an ICC warning lamp signal to turn ON the ICC system warning lamp
		FEB warning lamp signal		Transmits a signal to turn ON the FEB warning lamp Transmits an ON/OFF state of the Forward Emergency Braking
Distance sensor	ITS communication	Vehicle speed signal		Transmits a vehicle speed calculated by the ADAS control unit
ADAS control unit 2	ITS communication	Warning buzzer signal		Transmits a warning buzzer signal to turn ON the buzzer
ICC brake hold relay	ICC brake hold relay drive signal			Activates the brake hold relay and turns ON the stop lamp

DESCRIPTION

Intelligent Cruise Control

The Intelligent Cruise Control (ICC) system maintains a selected distance from the vehicle ahead within set speeds.

The driver can select the set speeds.

The vehicle travels at a set speed when the road ahead is clear.

The ICC system can be set to one of two cruise control modes:

CAUTION:

Never set the cruise speed exceeding the posted speed limit.

Vehicle-to-vehicle Distance Control Mode

For maintaining a selected distance between own vehicle and the vehicle in front of own vehicle up to the preset speed. Refer to System Description .

Conventional (Fixed Speed) Cruise Control Mode

For cruising at a preset speed. Refer to System Description .

NOTE: In the Conventional (Fixed Speed) Cruise Control Mode, a warning chime will not sound to warn driver if own vehicle are too close to the vehicle ahead.

WARNING: Always drive carefully and attentively when using either cruise control mode. To avoid serious injury or death, do not rely on the system to prevent accidents or to control the vehicle's speed in emergency situations. Do not use cruise control except in appropriate rode and traffic conditions.

Distance Control Assist (DCA) System

DCA share the systems and components with ICC system. Refer to System Description .

Predictive Forward Collision Warning (PFCW) System

PFCW share the systems and components with ICC system. Refer to System Description .

Forward Emergency Brake (FEB) System

FEB system share the systems and components with ICC system. Refer to System Description .
