Gearshift Cable: Removal

Raise hood.
Disconnect battery negative cable.
Disconnect gearshift cable from transaxle manual valve lever. See Fig 1 .
Remove gearshift cable housing from transaxle. Compress retention tabs with suitable pliers and remove from bracket.
From inside vehicle, remove gearshift knob. See Fig 2 .
Remove gearshift bezel. See Fig 3 .
Remove PRNDL surround bezel. See Fig 4 .
Remove front center console assembly. See Fig 5 .
Disconnect gearshift cable from gearshift lever pin and mechanism base. See Fig 6 .
Disengage cable grommet and remove cable assembly from vehicle.

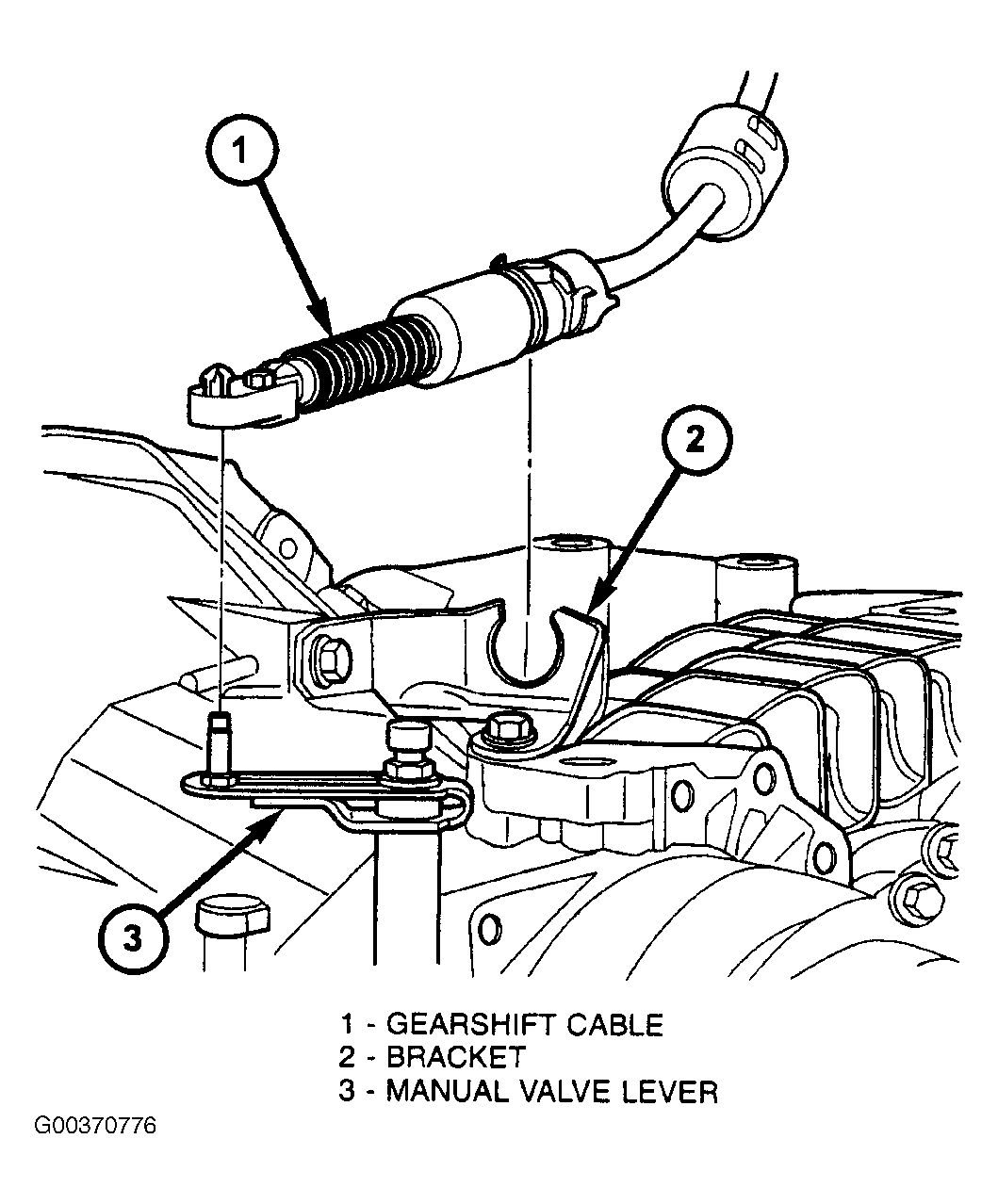

Fig 1: Disconnecting Gearshift Cable At Transaxle

Courtesy of CHRYSLER CORP.

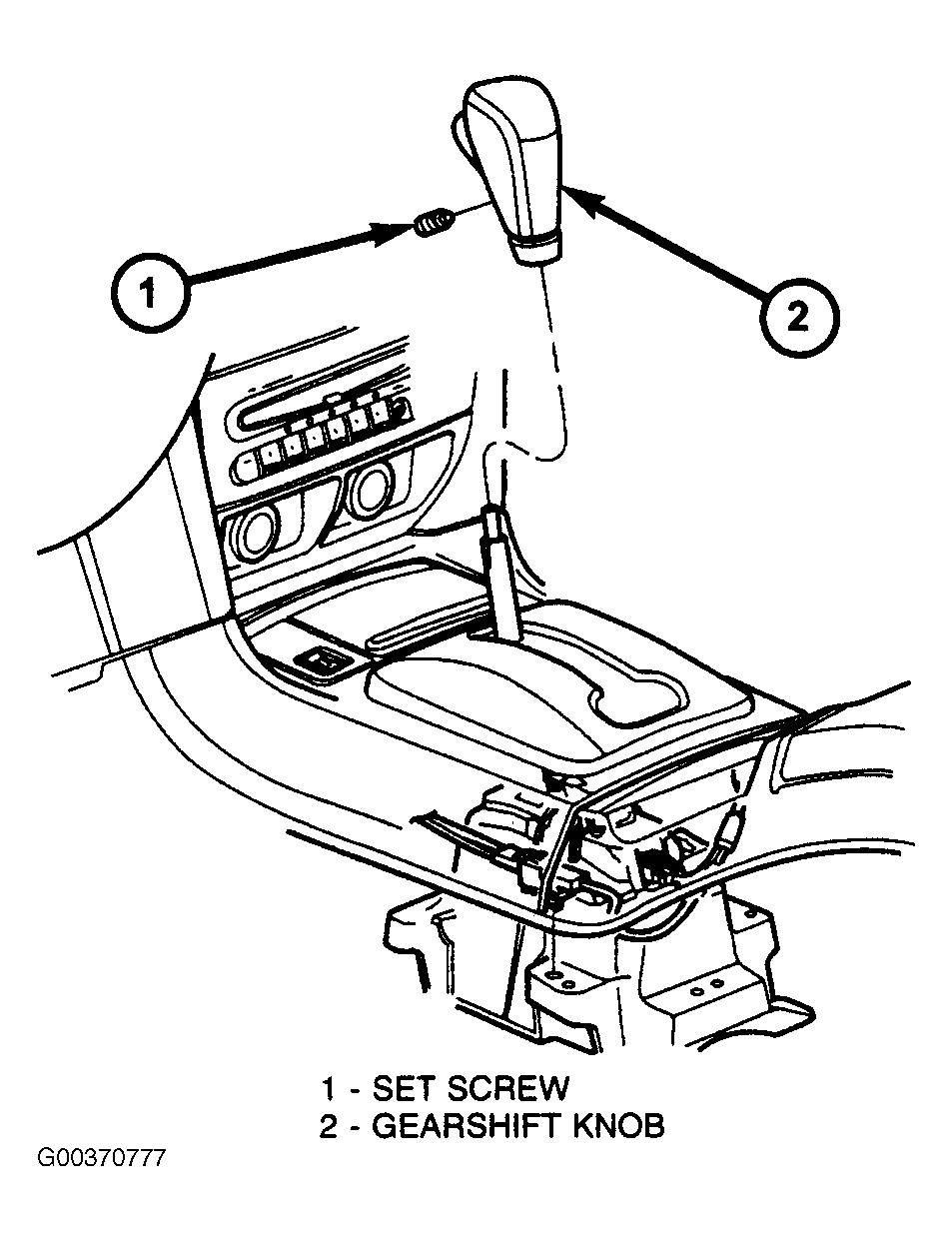

Fig 2: Removing & Installing Gearshift Knob

Courtesy of CHRYSLER CORP.

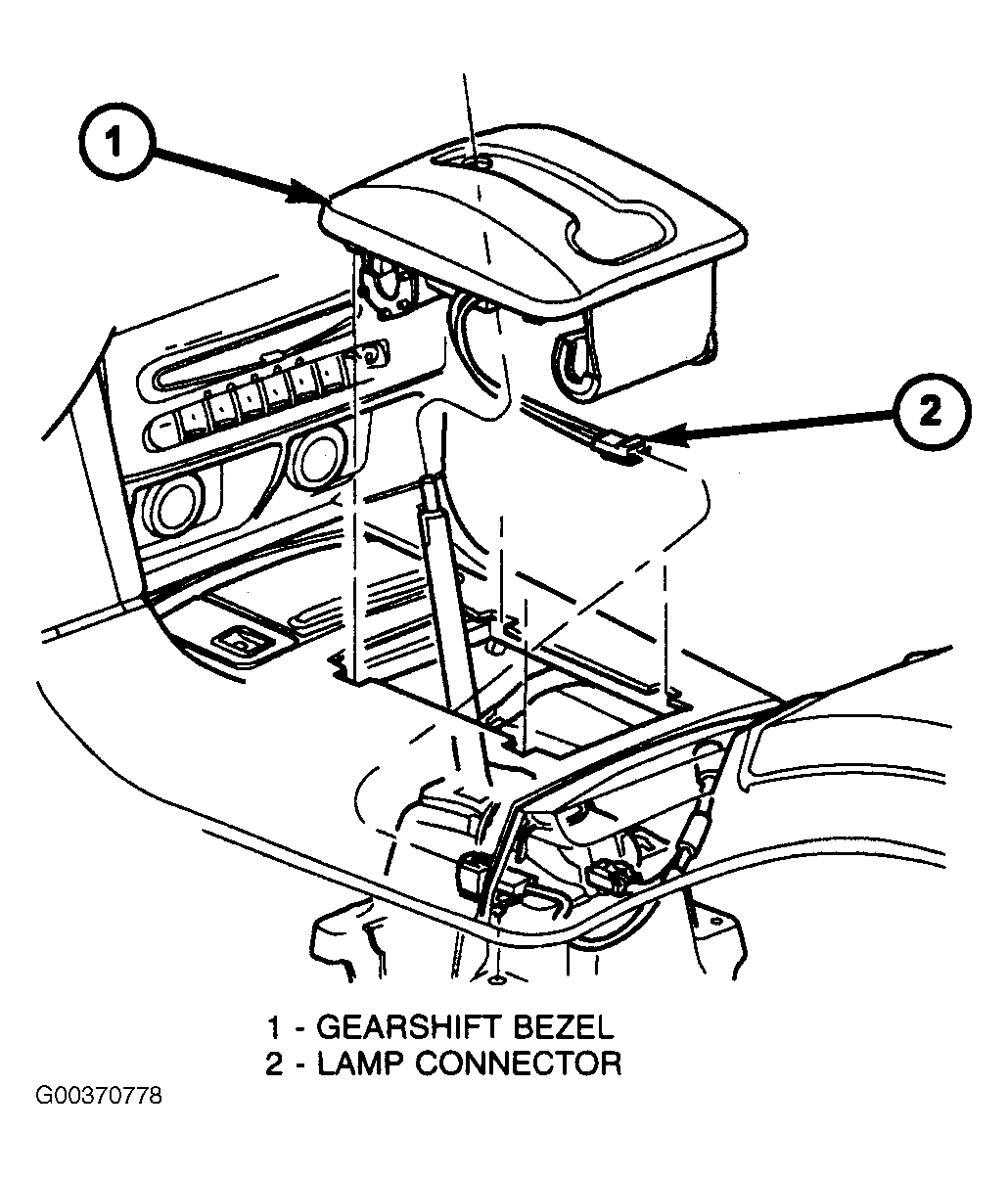

Fig 3: Removing & Installing Gearshift Bezel

Courtesy of CHRYSLER CORP.

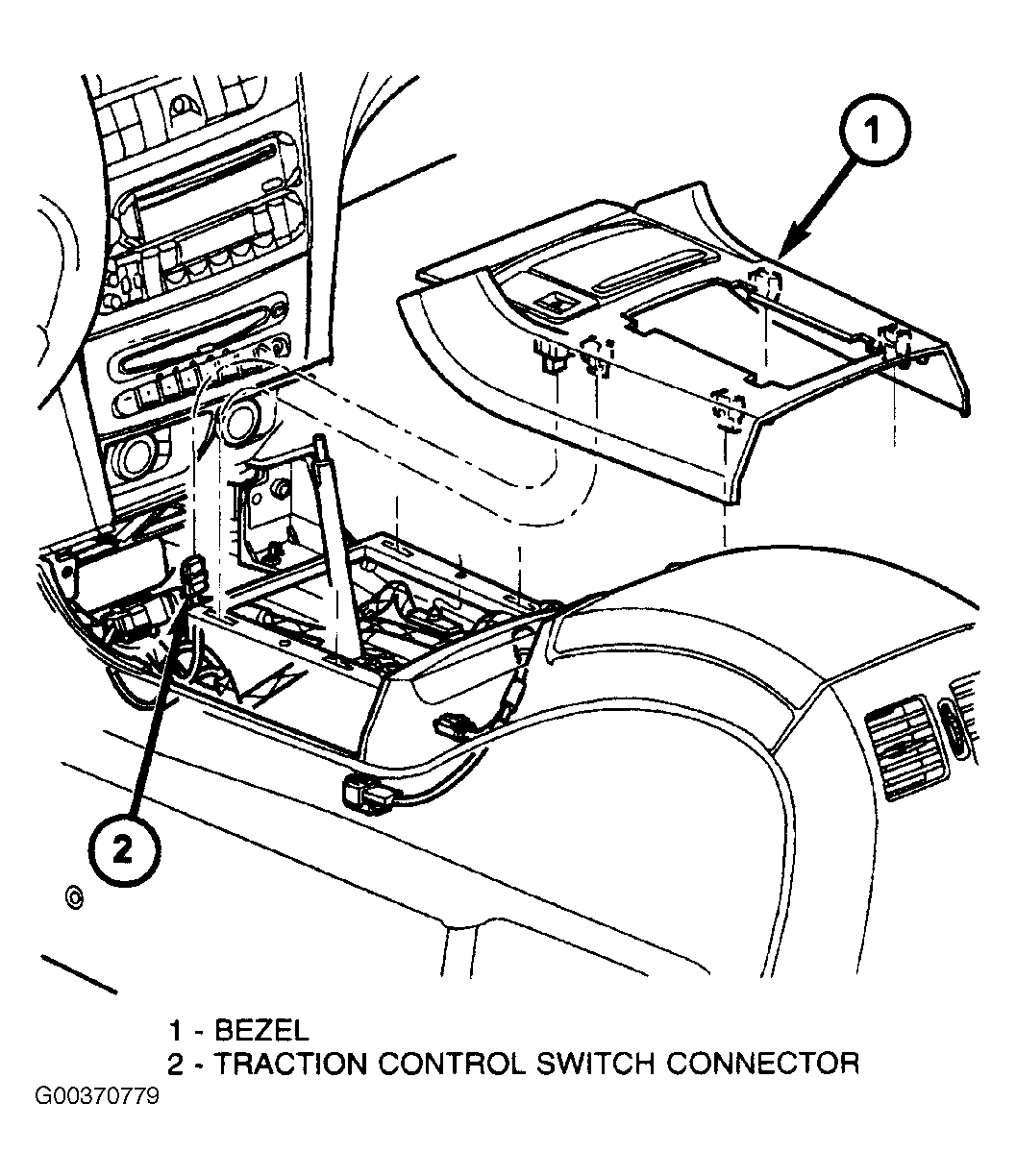

Fig 4: Removing & Installing PRNDL Surround Bezel

Courtesy of CHRYSLER CORP.

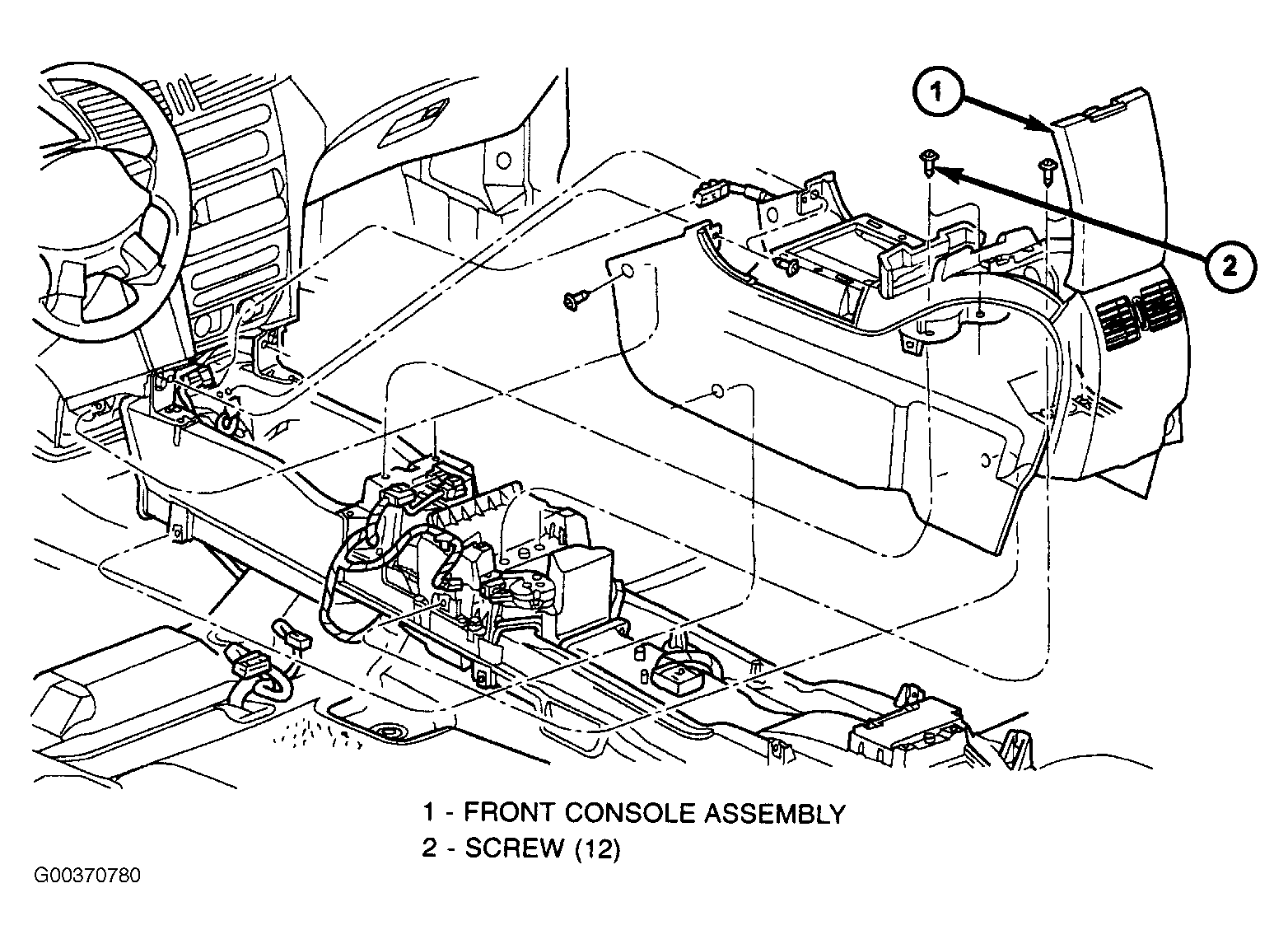

Fig 5: Removing & Installing Front Floor Console

Courtesy of CHRYSLER CORP.

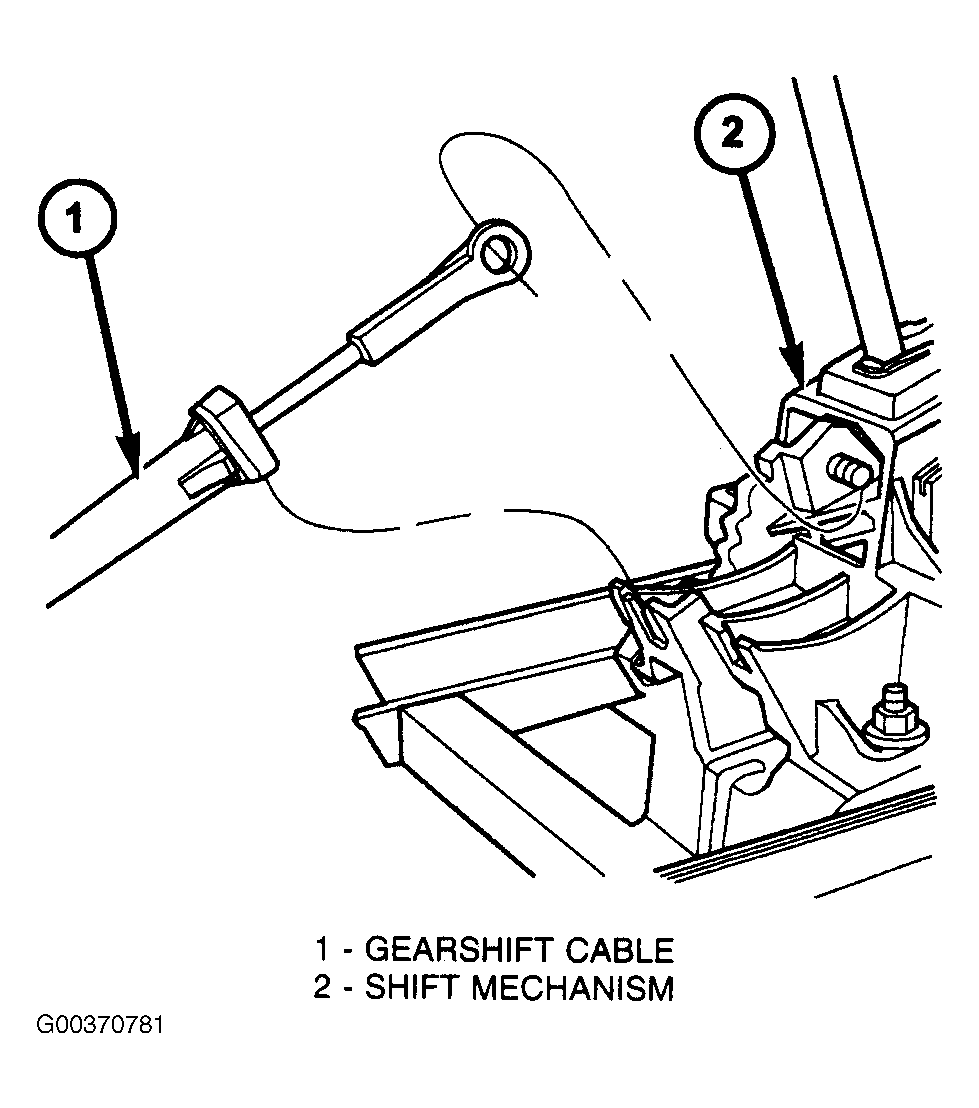

Fig 6: Disconnecting Gearshift Cable From Mechanism

Courtesy of CHRYSLER CORP.
