Audio System: Radio: Installation

Place radio near instrument panel opening (Fig 1 .

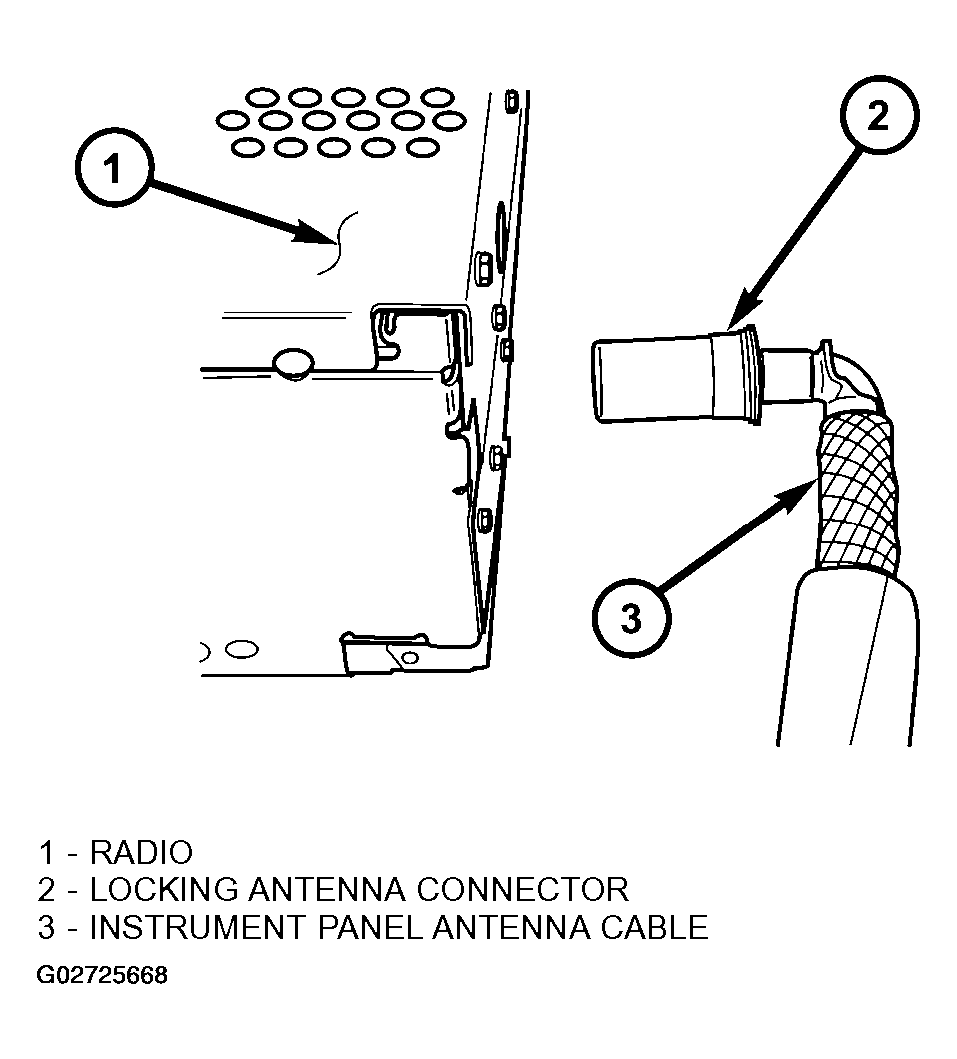

Fig 1: Placing Radio Near Instrument Panel Opening

Courtesy of DAIMLERCHRYSLER CORP.

Connect wiring and antenna lead to radio and slide into place.
Install four radio mounting screws.
Install instrument panel center trim bezel. (Refer to INSTALLATION ).
Connect the battery negative cable.
