Section 115 (Hood System): Latch: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Release hood latch and open hood.

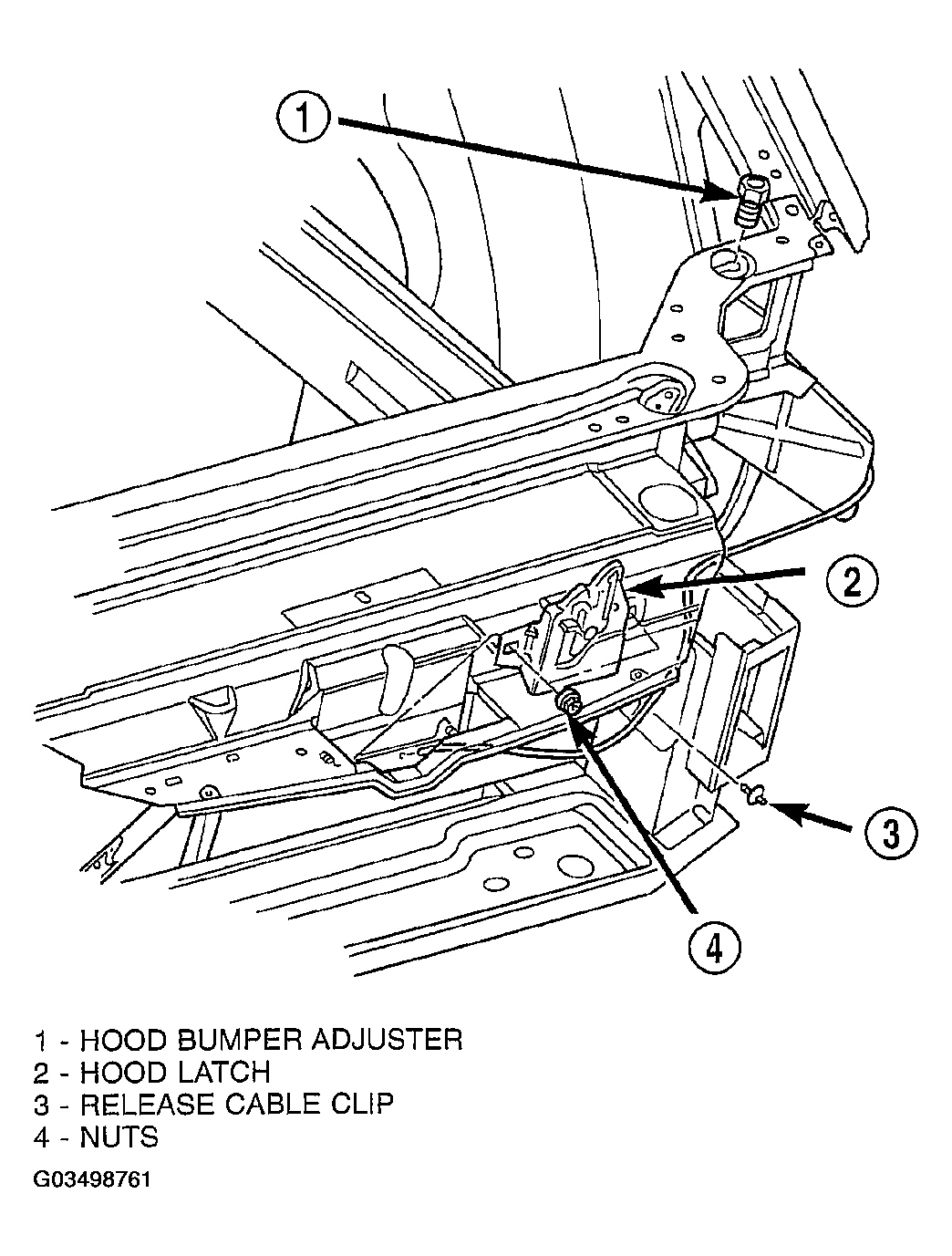

- Remove nuts attaching hood latch to cross-member (Fig 1

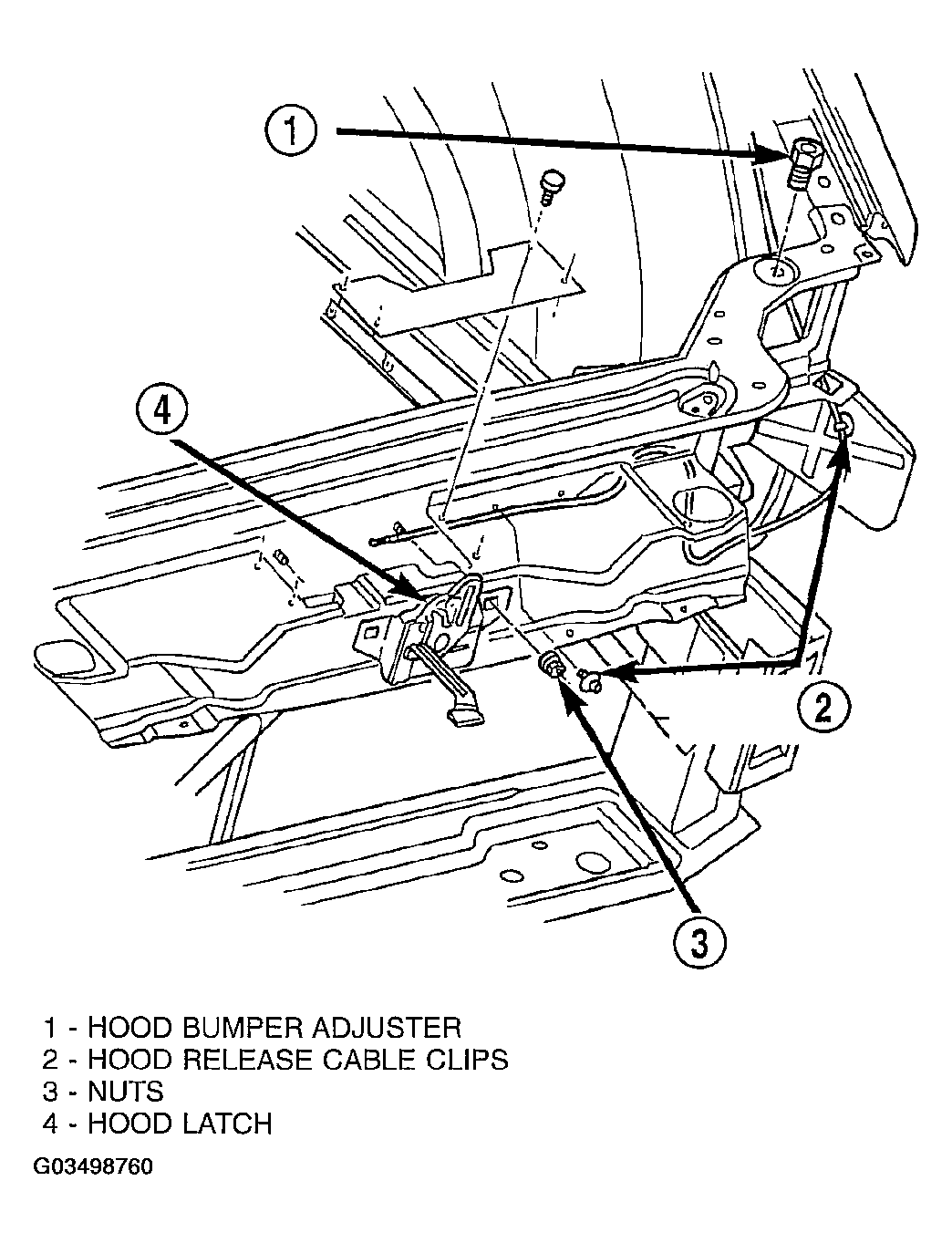

) or (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
- Remove hood latch from crossmember.
- Disconnect hood release cable from hood latch.
