Removal - Intrepid

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open deck lid.
  2. Remove fasteners attaching fascia to rear quarter and splash shields.
  3. Remove fasteners attaching fascia to lower trunk panel.
  4. Pull sides of fascia outwards to disengage snaps to quarter panel attaching bracket (Fig 1 ).

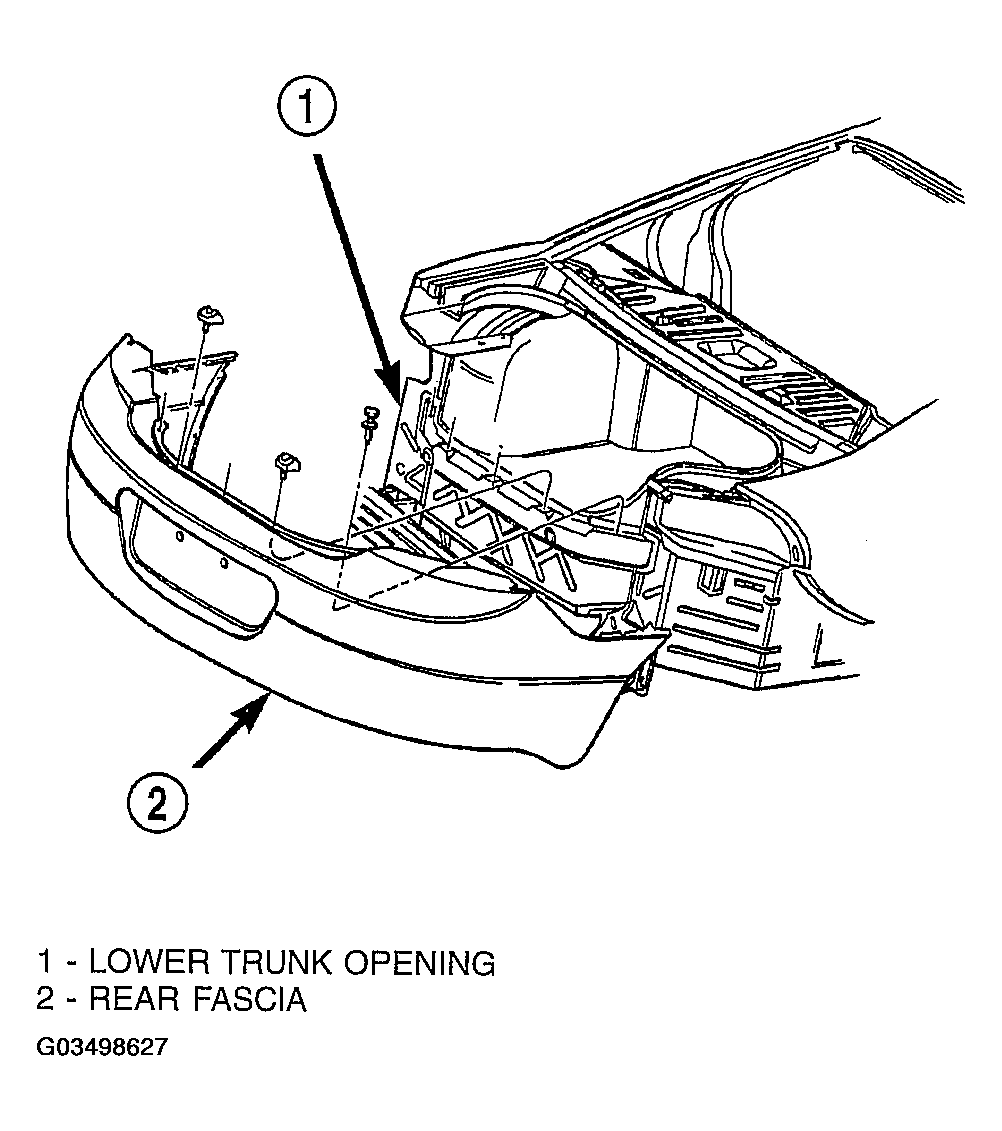

    Fig 1: Rear Bumper Fascia
    G03498627Courtesy of DAIMLERCHRYSLER CORP.
  5. Pull fascia rearward to expose license plate lamp wire connector. Disconnect wire harness connector. The connector is located on the left side of vehicle.
