Steering Column Control Module Replacement

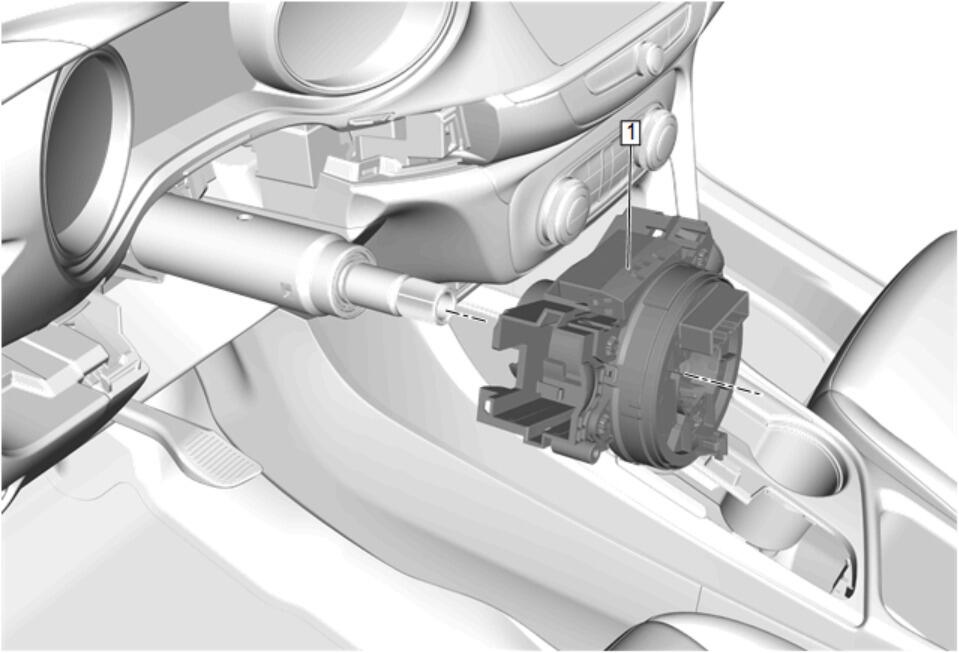

GM5247284Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Replacement
  2. Turn Signal Switch Replacement
  3. Windshield Wiper and Windshield Washer Switch Replacement
1 Steering Column Control Module
Procedure
Disconnect all electrical connectors.
