Turn Signal Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Steering Column Lower Trim Cover Replacement

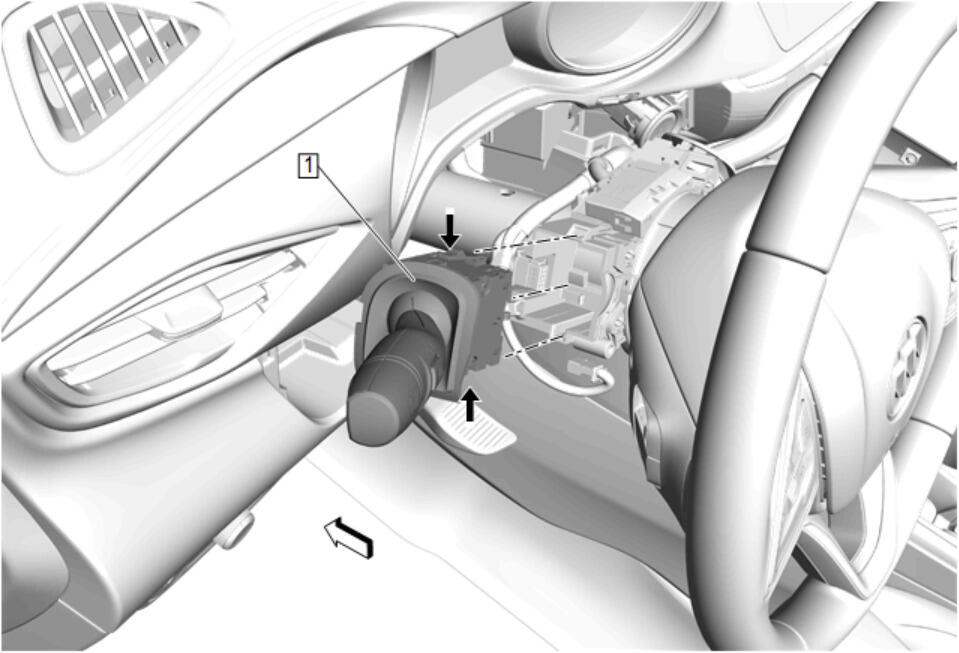

1	Turn Signal Switch Procedure Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Instrument Panel Steering Column Lower Trim Cover Replacement

Turn Signal Switch

Procedure

Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket.
Disconnect the electrical connector.
