Liftgate Center Applique Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

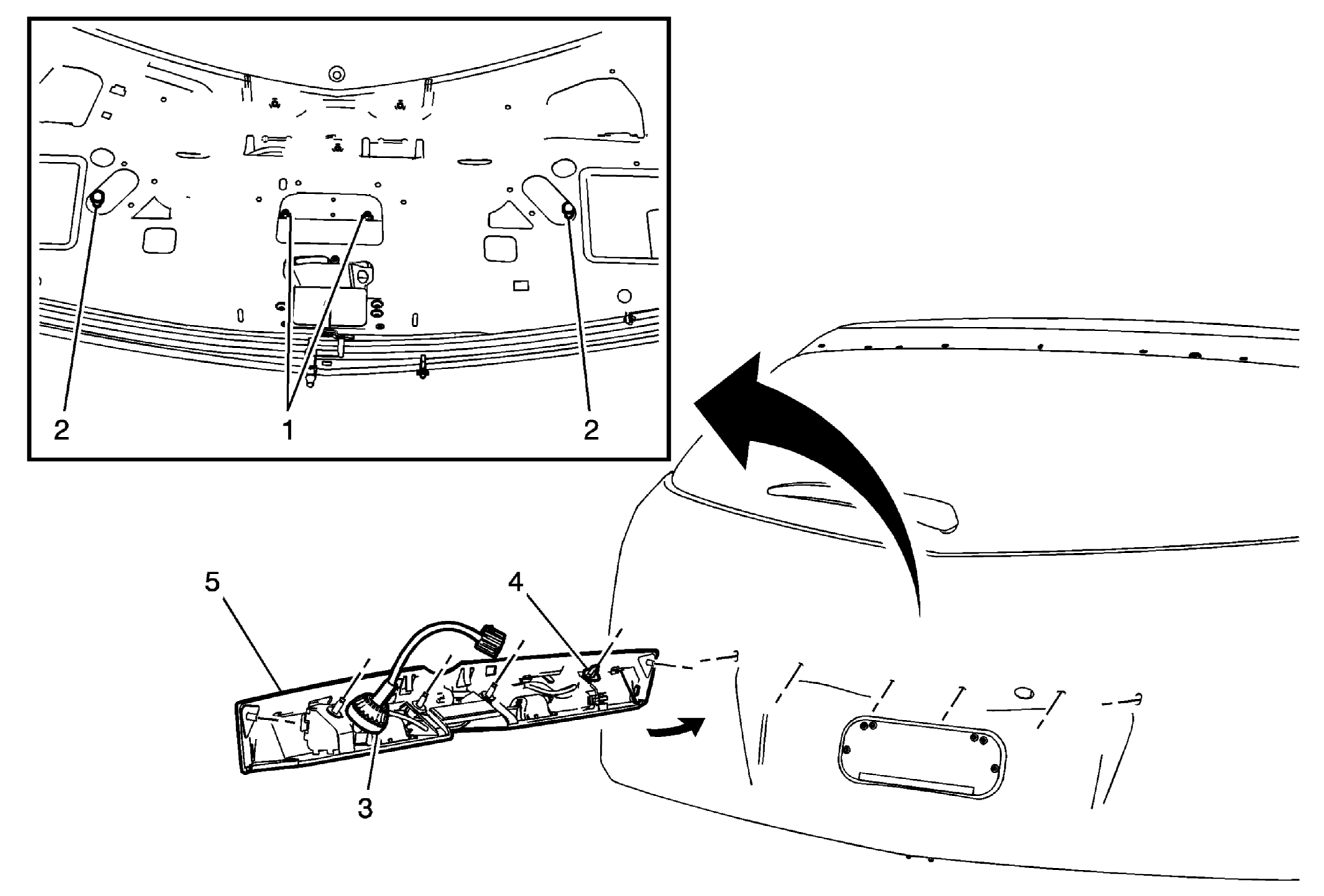

Fig 1: Identifying Liftgate Center Applique

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior liftgate trim panels. Refer to Liftgate Upper Trim Finish Panel Replacement andLiftgate Lower Trim Finish Panel Replacement . Disconnect the electrical connector for the license plate lamps. Disengage the electrical harness grommet from the outer liftgate panel.
1	Liftgate Center Applique Inner Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
2	Liftgate Center Applique Outer Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
3	Electrical Harness Grommet
4	Retainer (Qty: 1) Tip: Carefully release the upper retainer, replace as needed.
5	Liftgate Center Applique Panel Procedure: Transfer parts as needed to the new applique panel.
