Liftgate Lower Trim Finish Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

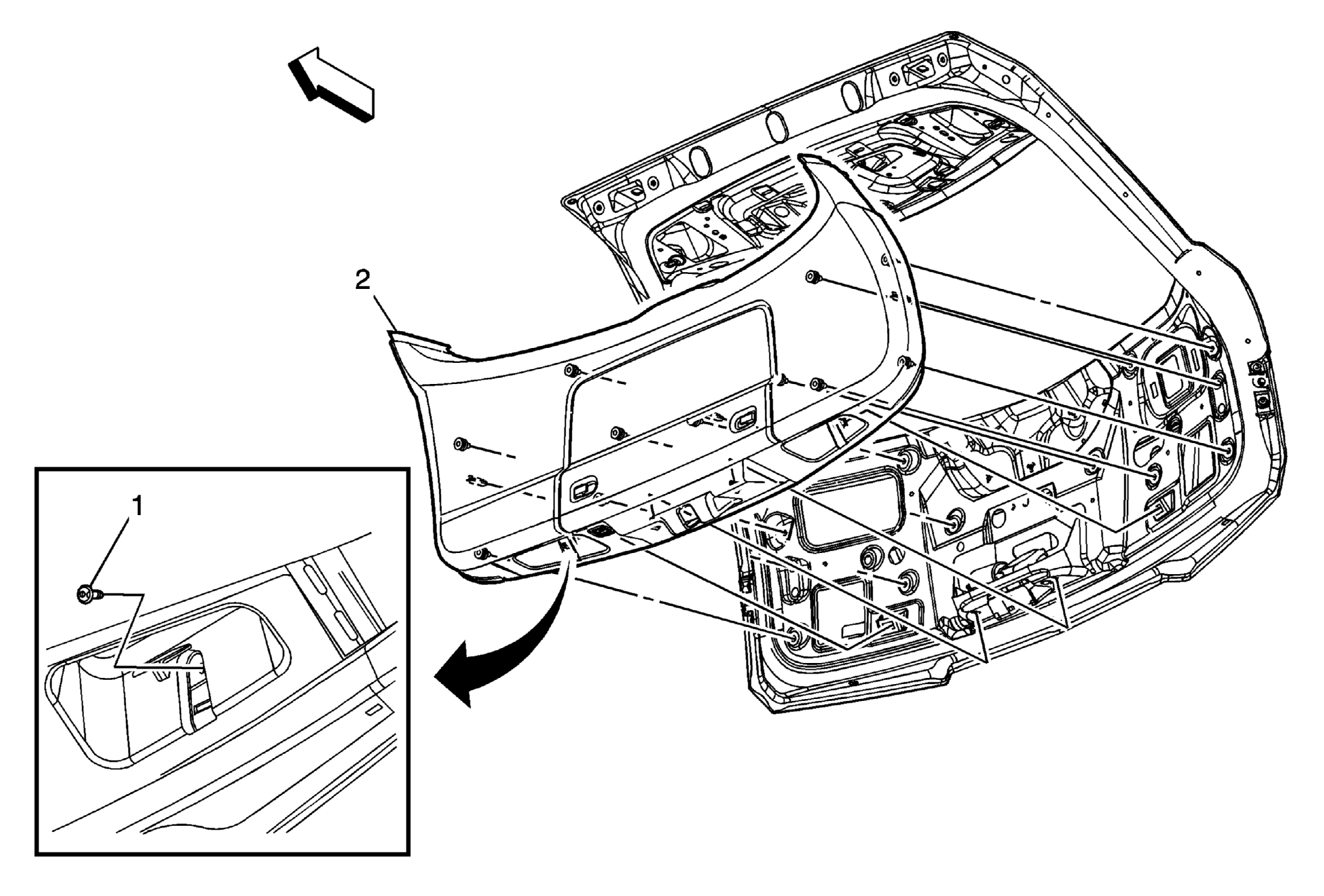

Fig 1: View Of Liftgate Lower Trim Finish Panel
GM2216039Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the liftgate upper trim finish panel. Refer to Liftgate Upper Trim Finish Panel Replacement .
  2. Remove upper and lower together. Separate after removal, if necessary.
  3. Pull outward to disengage the trim panel retainers.
1 Liftgate Lower Trim Finish Panel Fastener
CAUTION: Refer to Fastener Caution .
2 Liftgate Lower Trim Finish Panel Assembly

Procedure

  1. Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly.
  2. Disconnect the electrical connector, if equipped.
