Battery Energy Control Module (BECM) [2021-2022, E400V6]: Installation

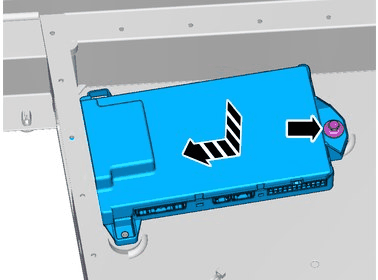

GLL1052278Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screw.

Use hands only.

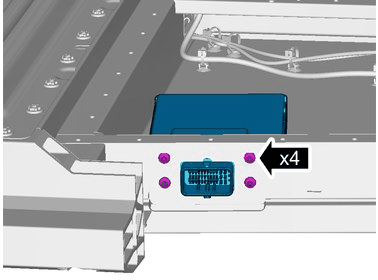

GLL1052507Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque:  M5, 5Nm

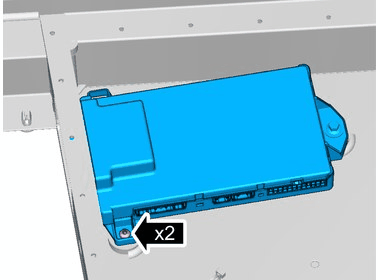

GLL1051851Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque:  M5, 5Nm

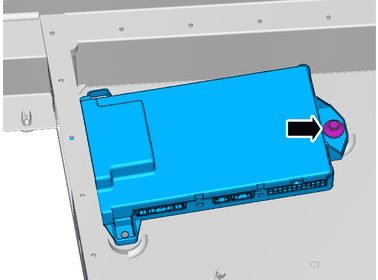

GLL1055409Courtesy of VOLVO CARS CORPORATION

Tighten the screw.

Torque:  M6, 10Nm

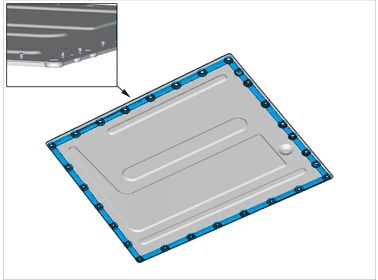

GLL1051873Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that a new component is installed.

Install the marked component.

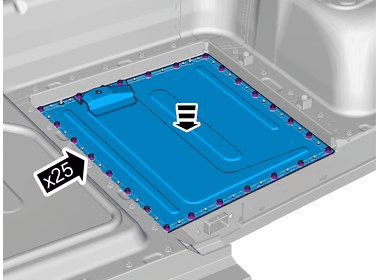

GLL1053624Courtesy of VOLVO CARS CORPORATION
  1. Install the marked component.
  2. Install the screws.

    Use hands only.

  3. Tighten the bolts.

    Torque:  Cover for high voltage battery (screw), 3.5Nm

Perform high voltage battery seal check. Refer to: HIGH VOLTAGE BATTERY SEAL CHECK

Install High Voltage Battery. Refer to: HIGH VOLTAGE BATTERY

NOTE:

This step is only necessary when installing a new component.

Order and download the appropriate software according to: VIDA/Software/Hardware Changes
