Power Operated Tailgate Module (Pot) [2017-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove side panel cargo compartment. Refer to: [SIDE PANEL LOADSPACE]

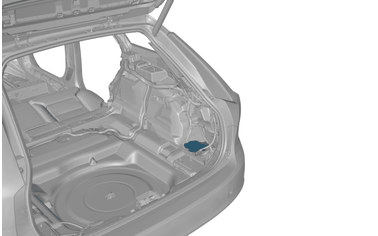

GLL1009349Courtesy of VOLVO CARS CORPORATION
NOTE:

Orientation view

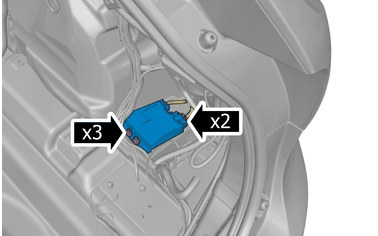

GLL1025694Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Remove the nuts.

Remove the marked part.
