Diagnostic Trouble Code (DTC) Information PAM-U300055
Condition

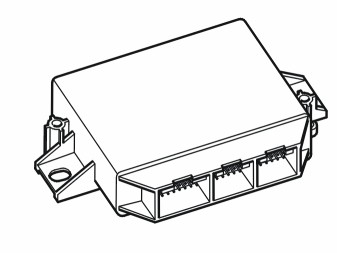

Parking assistance module (PAM) checks the internal software.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- The internal software is defective.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Control module supplied with power.
NOTE:
The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.
Substitute Value
- None.
Possible Source
- Software missing/wrong software in parking assistance module (PAM).
Fault symptom[s]
- KS, Front/rear park assist/Does not work
- 7G, Text window and warning symbol/Yellow symbol and text message
- IV, Text window and warning symbol/Text message
