Removing The Sub-Frame: Notes

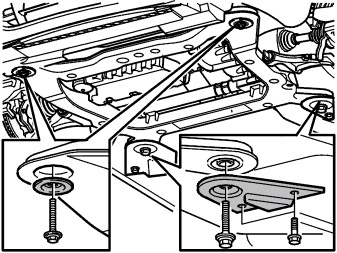

Fig 1: Identifying Bolts, Washers And Brackets In Sub-Frame

Courtesy of VOLVO CARS CORPORATION

• Remove and hang up the engine block heater (if applicable) on the left front mounting for the sub-frame
• Position a lifting table under the sub-frame
• Remove the screws holding the sub-frame brackets to the bodywork on both sides
• Remove the four screws from the sub-frame
• Carefully lower the sub-frame.
  NOTE:

  Ensure that the steering gear screws release from the sub-frame.

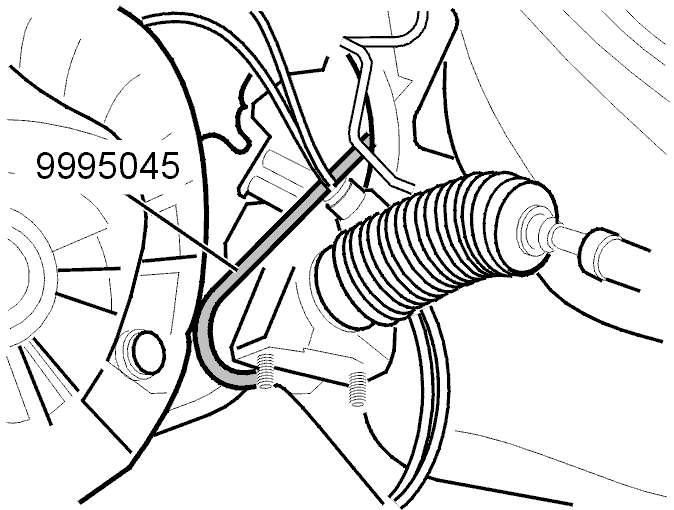

Fig 2: Hanging Steering Gear From Hook So That Lower Steering Shaft Does Not Come Apart

Courtesy of VOLVO CARS CORPORATION

Hang the steering gear from a hook see 9995045 so that the lower steering shaft does not come apart.
