Control Module: Service and Repair

Operation number: 43715-2

Transmission Control Module (TCM)

Removal

Note! Removal steps in this procedure may contain installation details.





Perform battery disconnecting and connecting

Remove the air filter housing Refer to: Air cleaner housing, Service and Repair

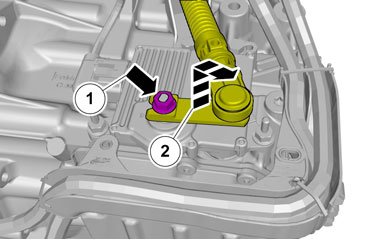

Torque: Gear selector mechanism (nut), 16 Nm

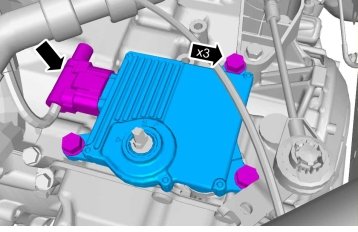

Torque: M8, 24 Nm





Installation





To install, reverse the removal procedure.

Order and download appropriate software Programming and Relearning

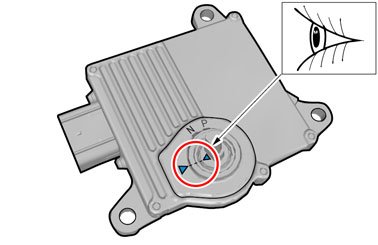

Calibrate according to: Calibrating position sensor
