Rear Seat Entertainment (RSE) Control Module

Operation number: 39030-2

Rear Seat Entertainment (RSE) Control Module

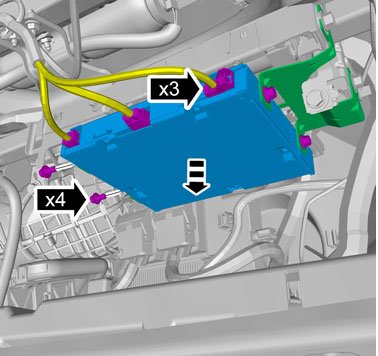

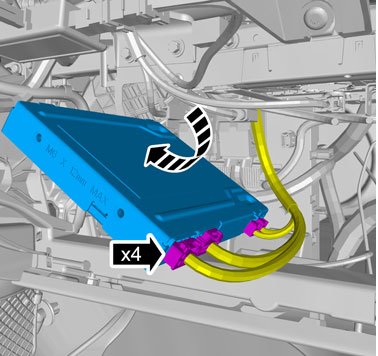

Removal

Note! Removal steps in this procedure may contain installation details.





Remove glove compartment Refer to: Glove compartment Glove Compartment





Note! Make sure that the component terminals are not bent or damaged.

Torque: M6, 10 Nm





Note! Make sure that the component terminals are not bent or damaged.

Installation

To install, reverse the removal procedure.

Order and download appropriate software Programming and Relearning
