General Audio Player Module

Operation number: 39345-2

General audio player module

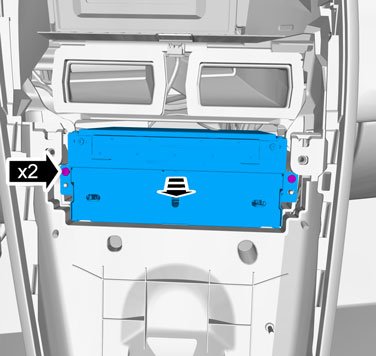

Removal





Remove center console Refer to: Center console, TF-80SC AWD, TF-80SC Center Console





Caution! Make sure that any disc is removed.

Caution! Make sure to eject the discs one at a time in numerical order, starting with disc No 6 followed by disc No 5.





Caution! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

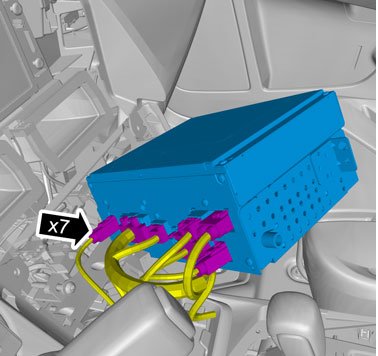

Note! Make sure that the component terminals are not bent or damaged.

Installation

To install, reverse the removal procedure.

Order and download appropriate software Programming and Relearning
