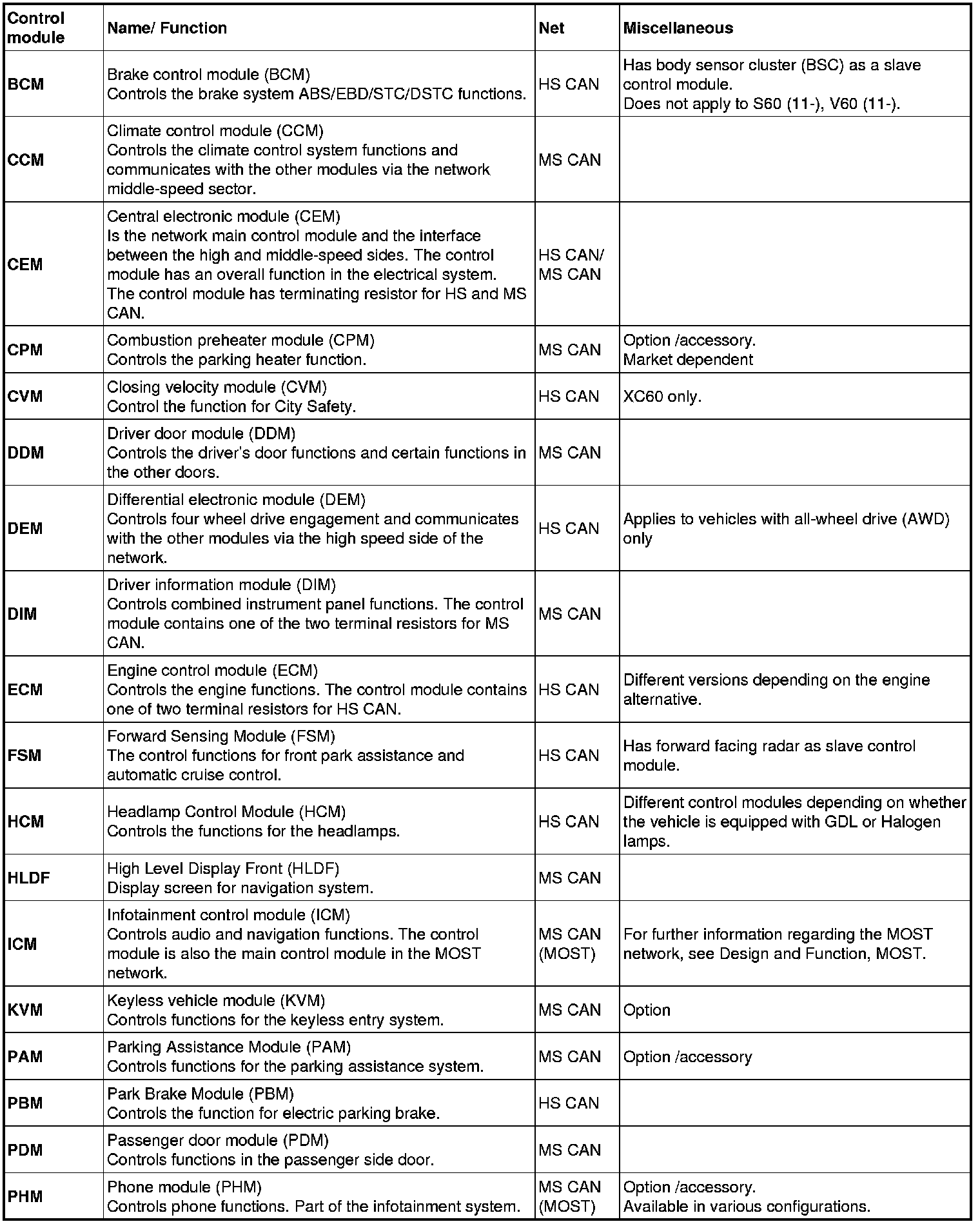

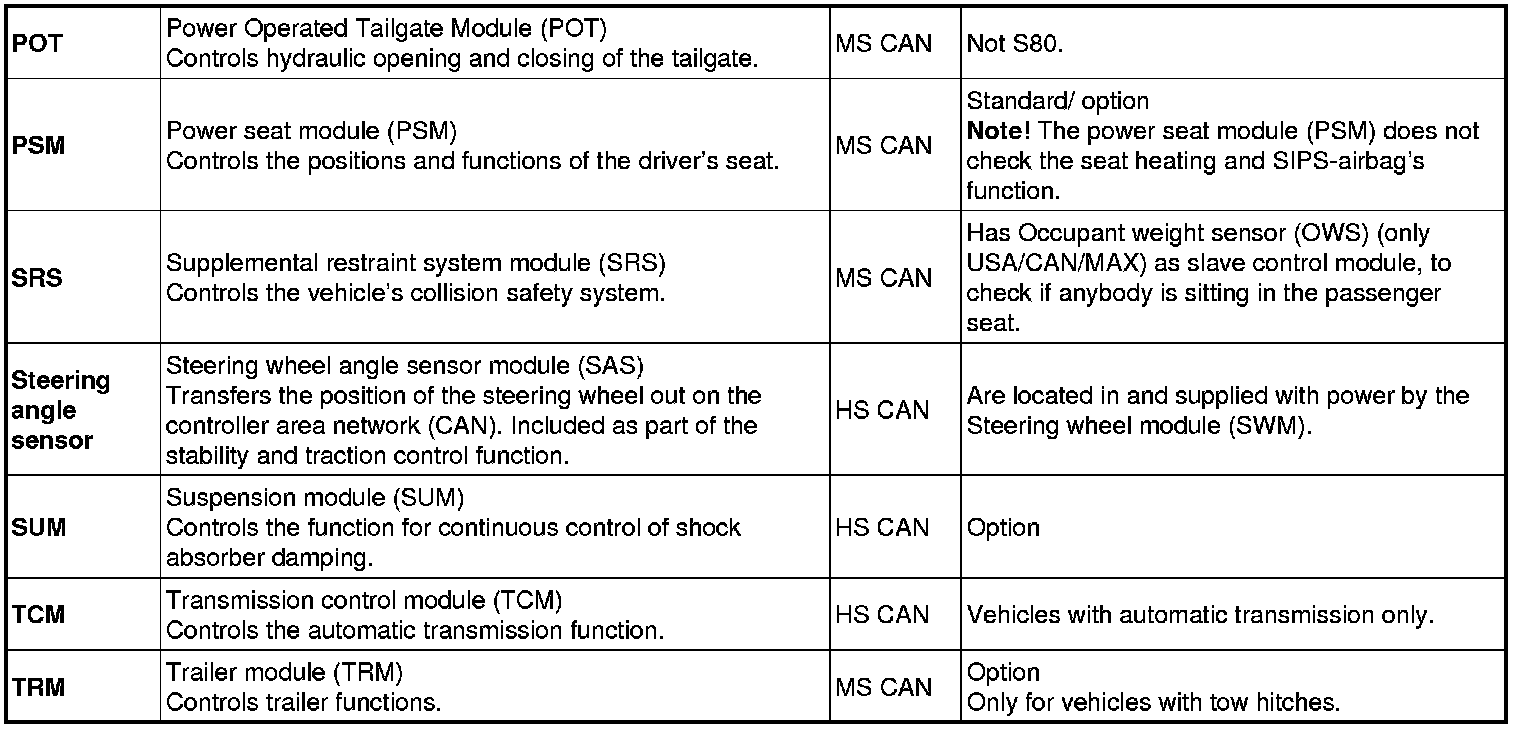

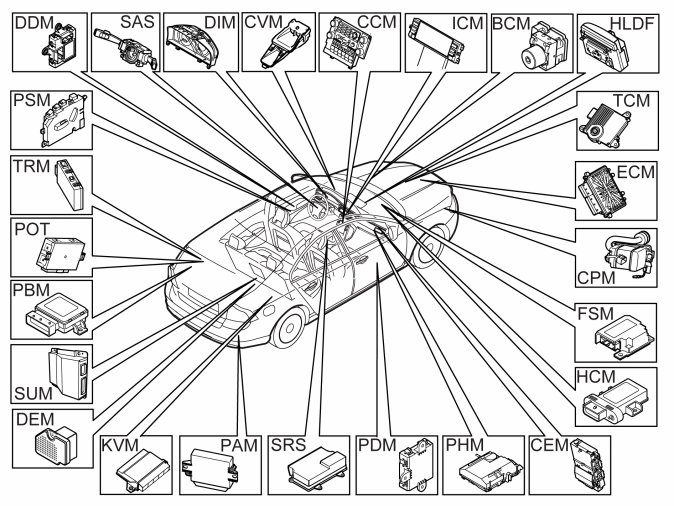

Control modules in the Control area network (CAN)




The number of control modules in the CAN varies depending on the level of equipment, the vehicle model and the structure week.

Note! To troubleshoot respective CAN-net, see troubleshooting for CAN-related diagnostic trouble codes for Central electronic module (CEM). For example, choose CEM-U000100/CEM-U000111/CEM-U000112/CEM-U000188 (HS CAN) or CEM-U001000/CEM-U001011/CEM-U001012/CEM-U001088 (MS/LS-CAN).
