Receiver Lock System Keyless Entry (RKE) [2011-2016]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

Courtesy of VOLVO CARS CORPORATION

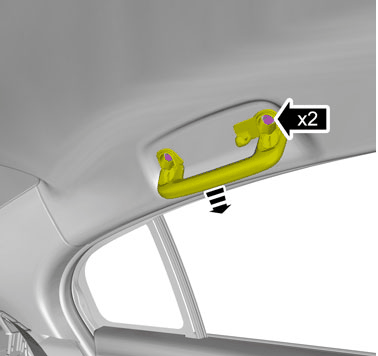

Torque: M6, 10 Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

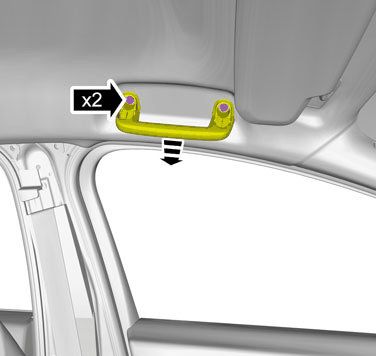

Torque: M6, 10 Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

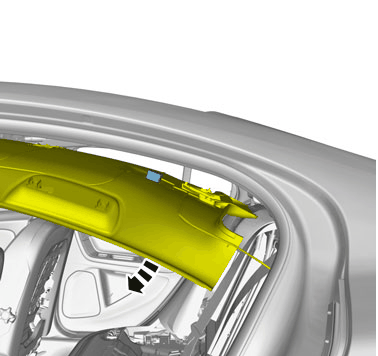

CAUTION:

Take extra care not to crease the headliner.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
