Installing The Spring: Notes

NOTE:

For tightening torques, see: TIGHTENING TORQUE .

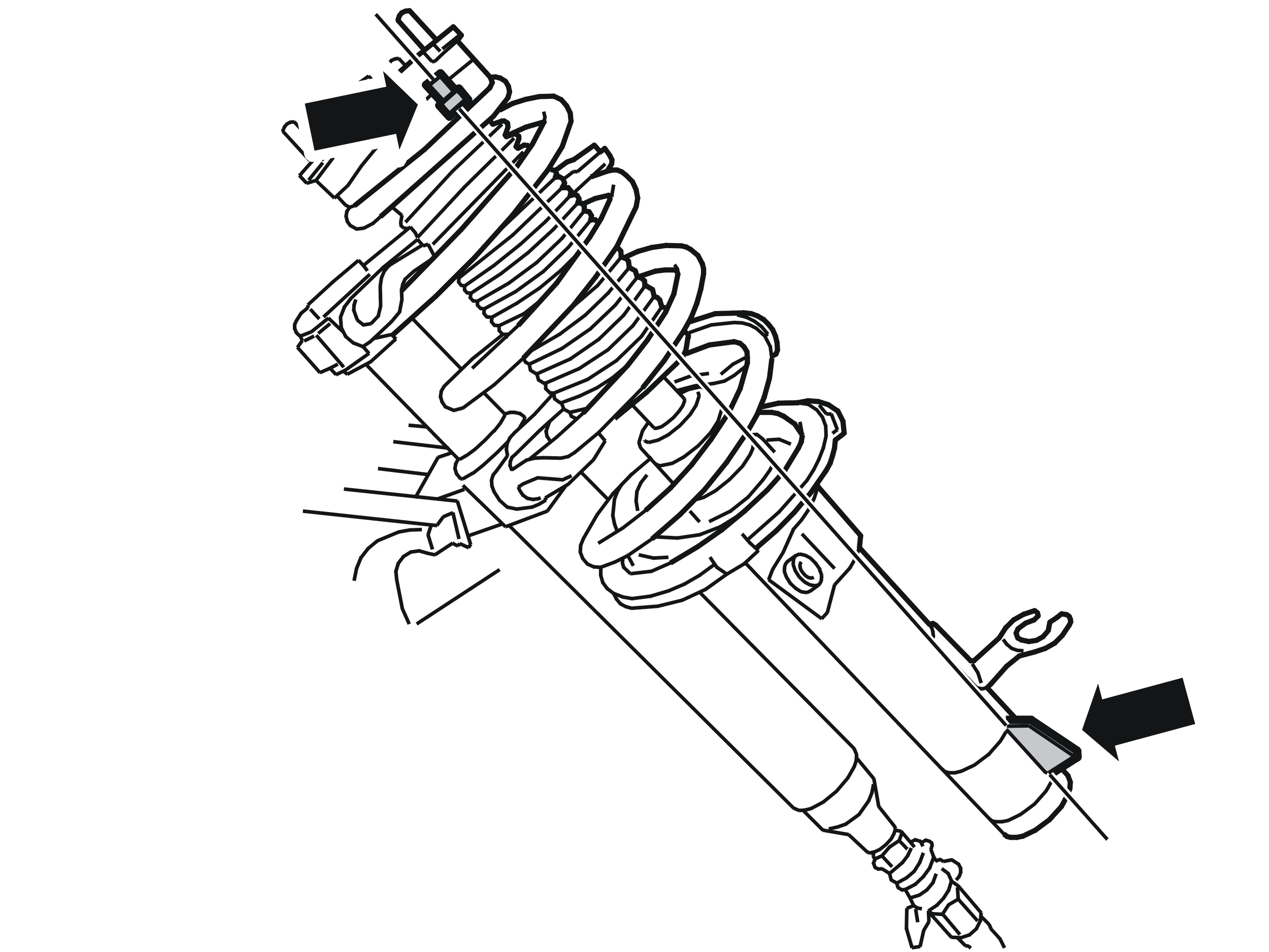

Fig 1: Checking Alignment Of Components

Courtesy of VOLVO CARS CORPORATION

Compress the new spring. Use: see 9512911 together with claws: see 9512914 .

Install:

the spring
the bump stop with the boot
the spring seat
the 1 nut. See: TIGHTENING TORQUE . Use: see 9995500 and a Torx-socket as a counterhold.

NOTE:

Ensure that the spring seat marking is directly opposite the guide for the spring strut when installing the spring.
