Washer System, 5 Cylinder Engines

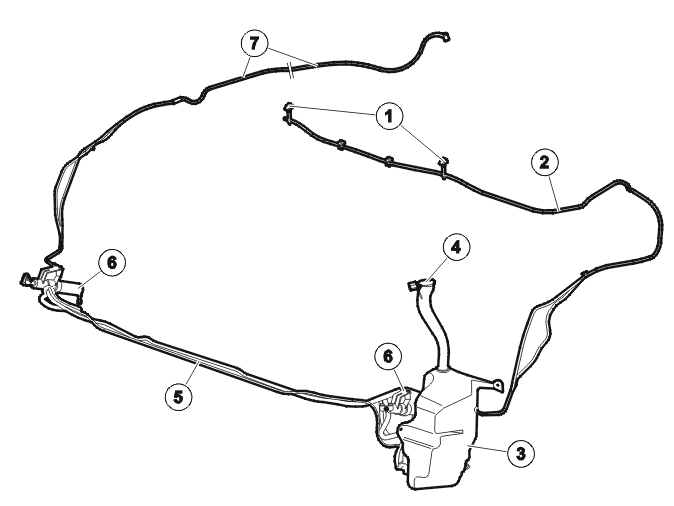

Fig 1: Identifying Washer System For 5 Cylinder Engines

Courtesy of VOLVO CARS CORPORATION

1. Washer nozzle windshield washing with check valve
2. Hoses windshield washing
3. Washer can
4. Filling tube with cover
5. Hoses headlamp washing
6. Headlamp wash / wipe with nozzle
7. Hoses rear windshield washing and nozzle

The washer system comes in two versions - one for 3 and 5-door models and one for 2 and 4-door models.

Both variants can be ordered with or without headlamp wash / wipe. Vehicles with headlamp wash / wipe have a high pressure pump located on the outside of the washer can (3).

Because 3 and 5-door models have rear window washing, they have a dual pump located on the washer reservoir instead of the standard monopump.
