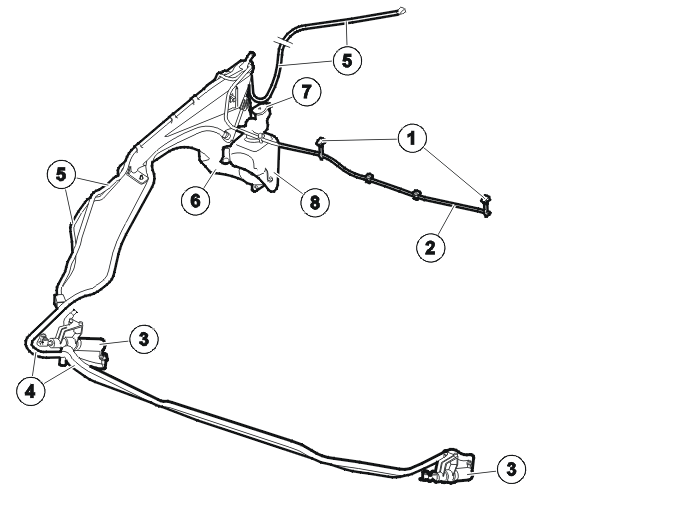

Washer System, 4 Cylinder Engines
- Washer nozzle windshield washing with check valve
- Hose windshield washing
- Headlamp wash / wipe with nozzle
- Hoses headlamp washing
- Hoses rear windshield washing and nozzle
- Washer can
- Filling tube with cover
- Washer can
The washer system comes in two versions - one for 3 and 5-door models and one for 2 and 4-door models.
Both variants can be ordered with or without headlamp wash / wipe. Vehicles with headlamp wash / wipe have a high pressure pump located on the outside of the washer can (6).
Because 3 and 5-door models have rear window washing, they have a dual pump located on the washer reservoir instead of the standard monopump.
