Component Location, Headlamp Control Module (HCM)






Location of components

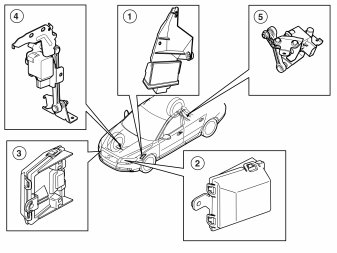

Location of Components:





Overview
1. Headlamp Control Module (HCM)
2. Left headlamp control unit (LHCU)
3. Right headlamp control unit (RHCU)
