Design And Function: Wheels: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame JACKING POINTS BODY

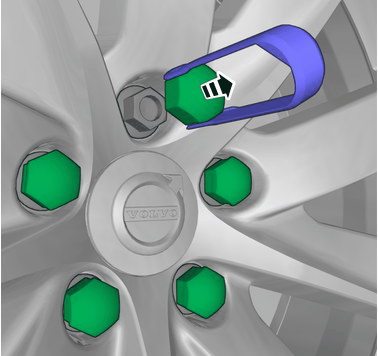

Courtesy of VOLVO CARS CORPORATION

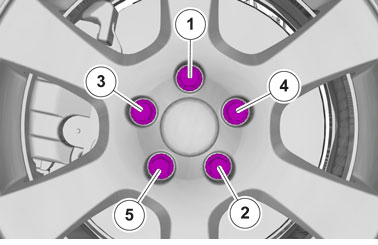

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the mating faces are clean and free of corrosion and foreign material.

Use: Installation paste, 1161397

Torque: Wheel to wheel hub

Stage 1: 20 Nm
Stage 2: 140 Nm
