Body Jacking Points

Follow the instructions for working at the car lift. See WORKING WITH A CAR LIFT .

Courtesy of VOLVO CARS CORPORATION

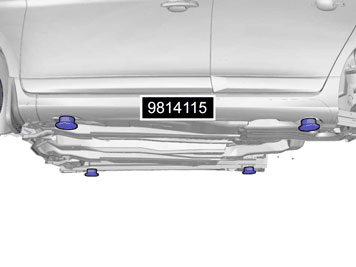

Special Tool: 981 4115 Rubber mat

Courtesy of VOLVO CARS CORPORATION

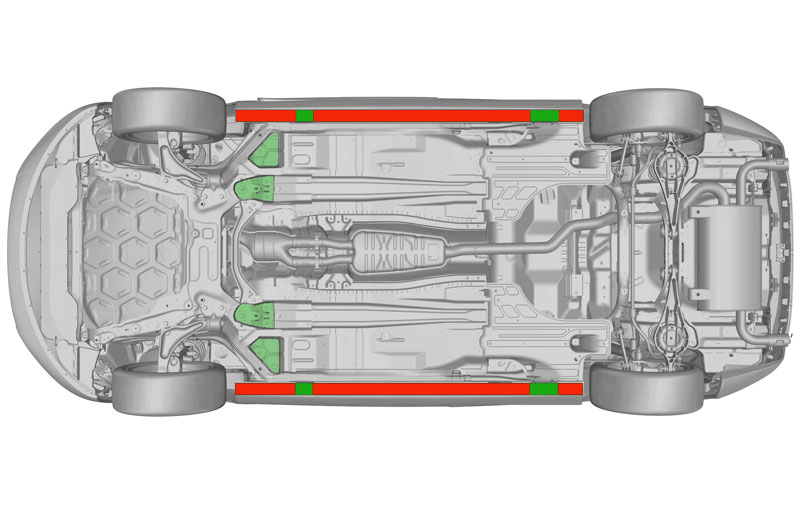

When lifting the vehicle, use the green-marked lifting points in the illustration above. The lifting plate shall be provided with rubber so that the vehicle is not damaged.
