Spring Rear: Spring: Removal

WARNING: This page is about a different car, the 2012 Volvo S80, 2011 Volvo S80, and 2010 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel. See WHEELS

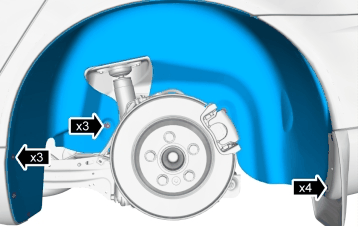

Fig 1: Wheel Well Shield Fasteners

Courtesy of VOLVO CARS CORPORATION

Remove link rear anti-roll bar. See REAR STABILIZER BAR LINK

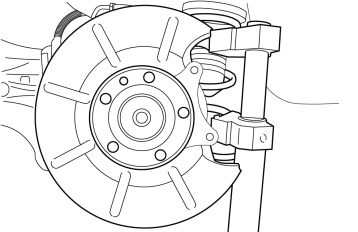

Fig 2: Identifying Hub

Courtesy of VOLVO CARS CORPORATION

see 9512911 see 9512937 see 9512913

Fig 3: Noting Position Of Component Before Removal

Courtesy of VOLVO CARS CORPORATION

NOTE: Note the position of each component before removal.
