General Information

WARNING:

Before using the product, make sure to read and understand the Material Safety Data Sheet supplied by the manufacturer or supplier.

WARNING:

Wear safety goggles and protective gloves.

NOTE:

Always follow the relevant supplier's recommendations.

NOTE:

Do not mix products from different suppliers.

See information about bonded windows, general safety information, see BONDED WINDOW, GENERAL SAFETY INFORMATION

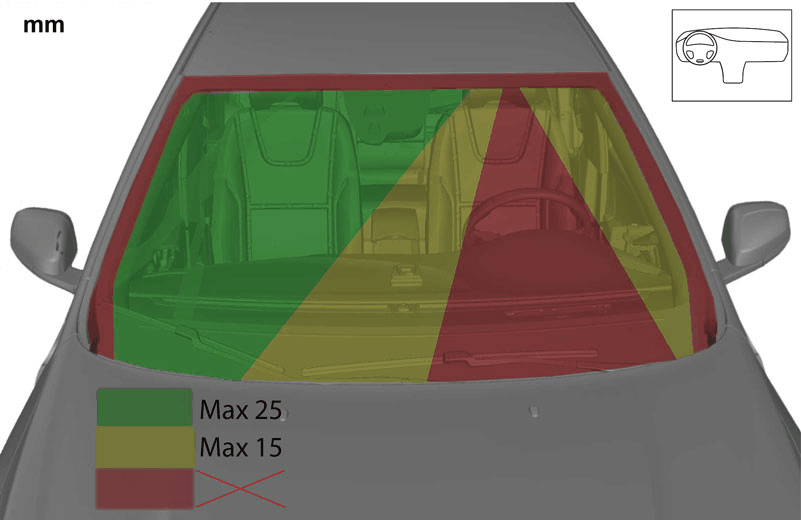

Fig 1: Identifying Bonded Window Glass Thicknesses

GLL179217

Courtesy of VOLVO CARS CORPORATION

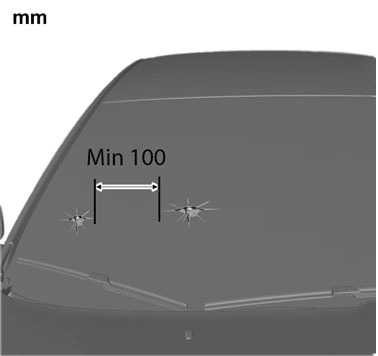

Fig 2: Identifying Minimum Distance Between Damages On Window Glass

GLL179219

Courtesy of VOLVO CARS CORPORATION

Minimum distance between damaged areas in the pane of glass is 100 mm.

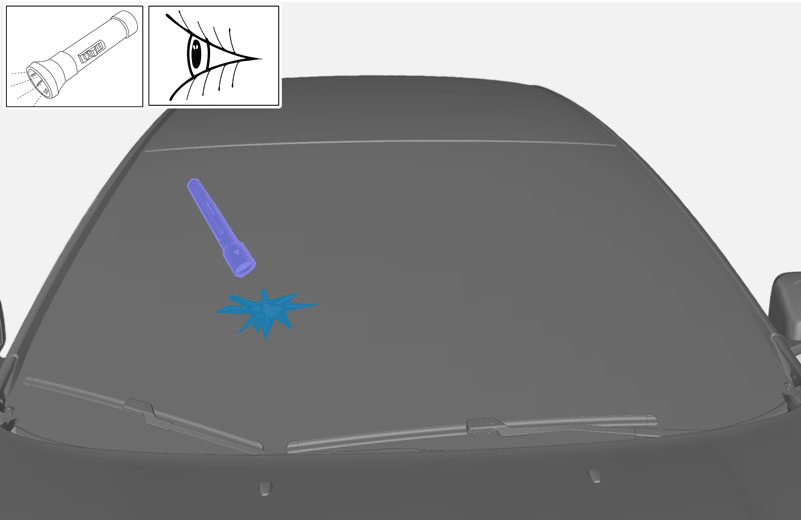

Fig 3: Identifying Visual Inspection Of Damaged Window Glass

GLL179216

Courtesy of VOLVO CARS CORPORATION

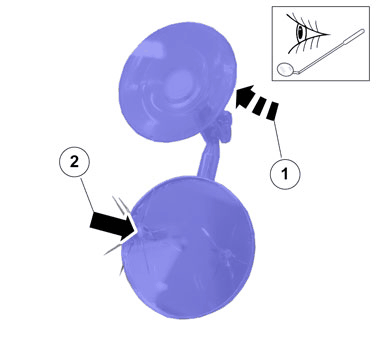

Fig 4: Identifying Alignment And Application Of Window Glass Drill Kit

GLL179223

Courtesy of VOLVO CARS CORPORATION

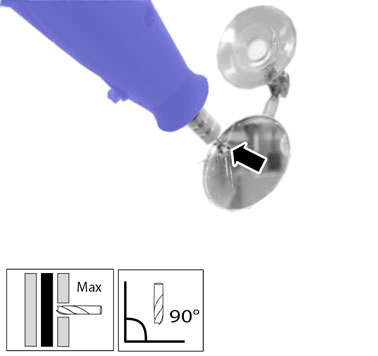

Fig 5: Identifying Drill To Create Repair Hole

GLL179214

Courtesy of VOLVO CARS CORPORATION

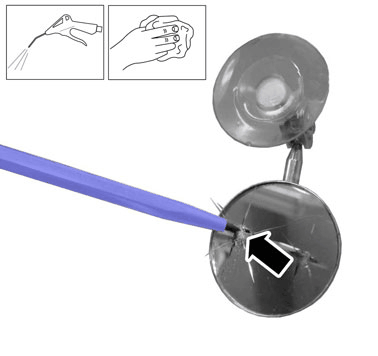

Fig 6: Cleaning Drill Hole To Remove Glass Chips

GLL179222

Courtesy of VOLVO CARS CORPORATION

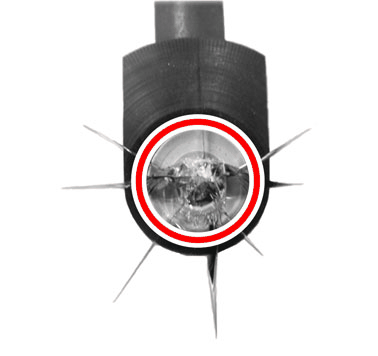

Fig 7: Identifying Repair Tool Placed On Window Glass

GLL179215

Courtesy of VOLVO CARS CORPORATION

Centre the tool and apply resin filler according to the manufacturer's instructions.

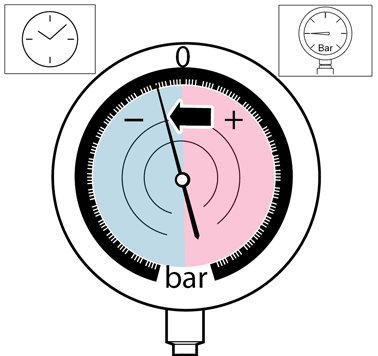

Fig 8: Identifying Applied Vacuum Measured On Gauge And Repair Time

GLL179226

Courtesy of VOLVO CARS CORPORATION

Create a vacuum using the tool and allow the resin filler to run out into the damaged area.

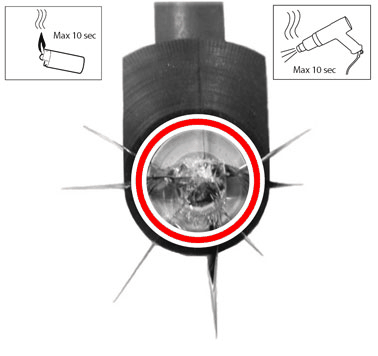

Fig 9: Identifying Heat Applied To Repair

GLL179228

Courtesy of VOLVO CARS CORPORATION

Heat the pane of glass from the inside and rub the window by hand to remove any air from the damaged area and help the resin filler flow out.

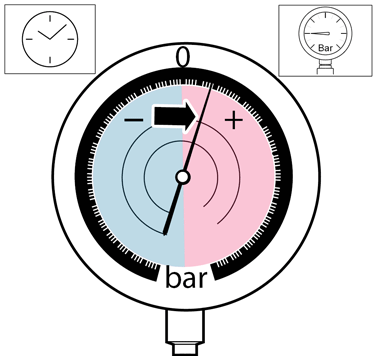

Fig 10: Identifying Applied Pressured Measured On Gauge And Repair Time

GLL179229

Courtesy of VOLVO CARS CORPORATION

Create an overpressure using the tool and allow the resin filler to run out into the damaged area.

Fig 11: Identifying Heat Applied To Repair

GLL179228

Courtesy of VOLVO CARS CORPORATION

Heat the pane of glass from the inside and rub the window by hand to remove any air from the damaged area and help the resin filler flow out.

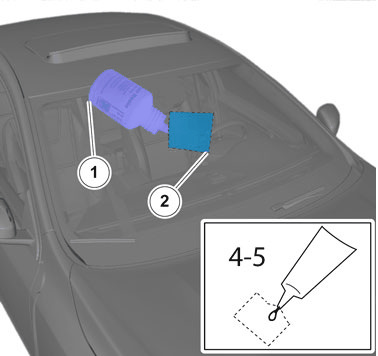

Fig 12: Identifying Resin Filler Applied To Damaged Area On Plastic Film

GLL179224

Courtesy of VOLVO CARS CORPORATION

Apply resin filler directly to the damaged area. Apply a plastic film to keep the resin filler in place.

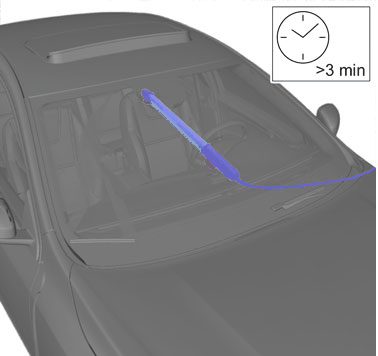

Fig 13: Identifying UV Light To Cure Resin Filler

GLL179227

Courtesy of VOLVO CARS CORPORATION

Use UV light to cure the resin filler.

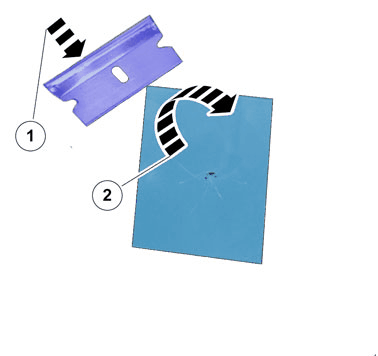

Fig 14: Identifying Razor To Peel Away Plastic Film

GLL179218

Courtesy of VOLVO CARS CORPORATION

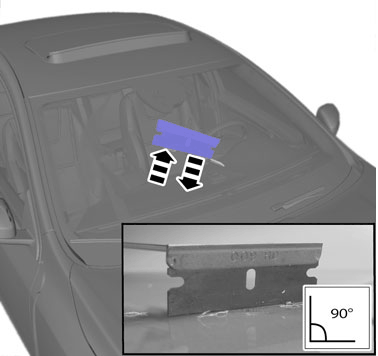

Fig 15: Using Razor On Repaired Window Surface

GLL179221

Courtesy of VOLVO CARS CORPORATION

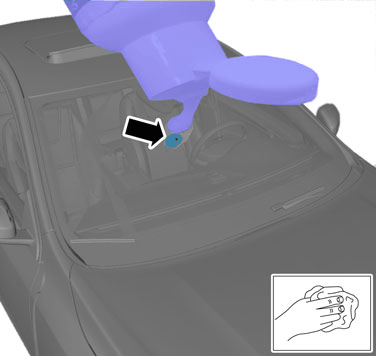

Fig 16: Identifying Application Of Window Polish

GLL179220

Courtesy of VOLVO CARS CORPORATION

Polish with polish.
