Installing the Remote Starter Unit

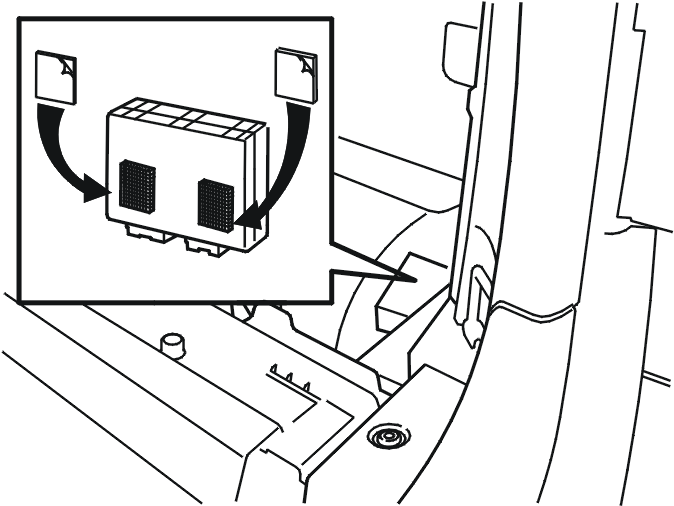

Fig 1: Identifying Remote Starter Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the reverse of the remote starter unit. Use a wet wipe and allow to dry.

Remove the masking tape.

Press the two Velcro strips on the underneath of the remote starter unit on to the strips on the body or parcel shelf.

Connect the connector.

Install the remote starter unit.
